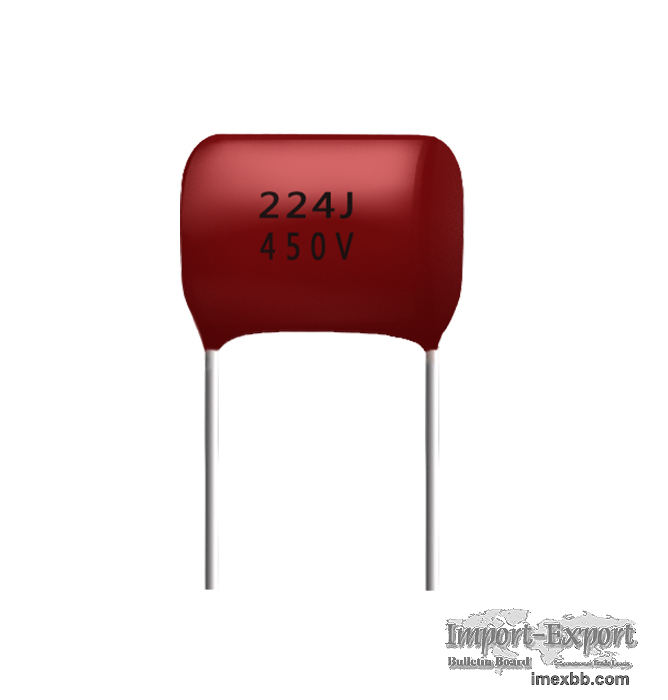

CBB21 224J 450V metal film capacitor

CBB21 224J 450V metal film capacitor metallized polypropylene film
capacitor film capacitor manufacturers

Film Capacitor features:
1. Metallized polypropylene film, non-inductive structure, large capacity, less
change in capacity, and small amplitude of internal temperature rise.
2. Low loss at high frequency, strong self-healing ability, withstand high
pulses, large current, and high frequency resistance of 100KHZ.

thin film capacitor Electrical characteristics:
Technical requirements reference Standard GB/T 14579 (IEC 60384-17)
Climatic Category 40/105/21
Operating Temperature -40℃~105℃（+85℃~+105℃：decreasing factor1.25% per℃
for UR）
Rated Voltage 100V、250V、400V、630V、1000V
Capacitance Range 0.001μF~3.3μF
Capacitance Tolerance ±5%(J),±10%(K)
Withstand Voltage 1.5UR,5sec
Insulation Resistance(IR) Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s
at 100V,20℃,1minFor 60sec / 25℃For 60sec / 25℃
Dissipation Factor (tgδ) 0.1% Max, at 1KHz and 20℃

We Provide Precision Resistor and Buy Resistor, Our company has been committed
to supply personalized product solutions to customers,please Consult Us.

If you want to know more industry information about resistors and capacitors,
please click here.

https://www.jeccapacitor.com/film-cap , acitor/metallized-polypropylene-film-
capacitor , -cbb21-224j-450v.html

Minimum Order: 1000 pieces
