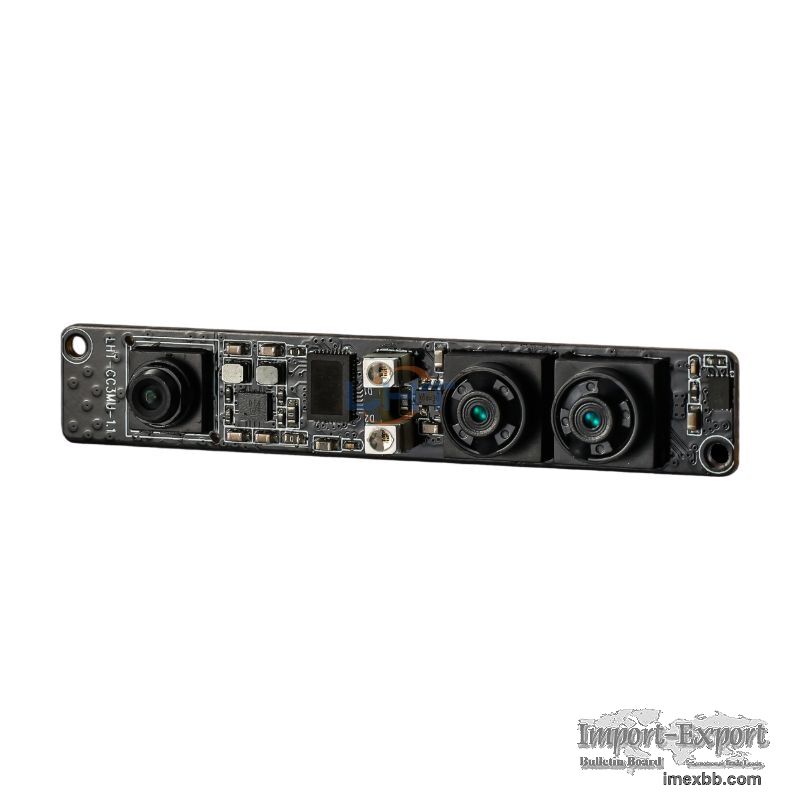

CC3MU Series Micro Cameras

The LHT-CC3MU trinocular camera module features dual 3MP + 2MP sensors,
supports automatic infrared fill light, autofocus, automatic gain control/white
balance, liveness detection, and facial recognition with software. Power
consumption is as low as 1W, and it supports Windows, Android, and Linux
systems. It's plug-and-play, requiring no drivers, for convenient and fast
operation.
This product features dual 1/3" CMOS + 1/5" CMOS sensors, supports MJPG/YUY2
formats, and has a standard size of 70*12*7mm. Customizable lens angles and
dimensions are available, and the normal light facial recognition range is 30-
120cm. A 3-meter, 5-pin, 1.25mm USB 2.0 cable is included. It is suitable for a
variety of scenarios, including security surveillance, industrial inspection,
and smart devices, providing clear and stable images for visual applications.
Dual Lens Camera Modules Technical Parameters:
Pixel size 2.2um*2.2um 2.2um*2.2um
Video output MJPG/YUY2 MJPG/YUY2 MJPG/YUY2
Maximum Frame Rates (MJPG Resolution and Frame Rate） Black and
White 2048*1536   Color 2048*1536   1600*1200
Maximum Frame Rates (YUY2 Resolution and Frame Rate） Black and
White 2048*1536   Color 2048*1536   1600*1200
Dynamic range 69.5dB 69.5dB
Min.Illumination 1LUTX 1LUTX 1LUTX
Digital interface 5-pin 1.25mm USB2.0 5-pin 1.25mm USB2.0 MIPI
Power requirements 5V+-0.5 5V+-0.5 5V+-0.5
Power Consumption 1W 1W 1W
