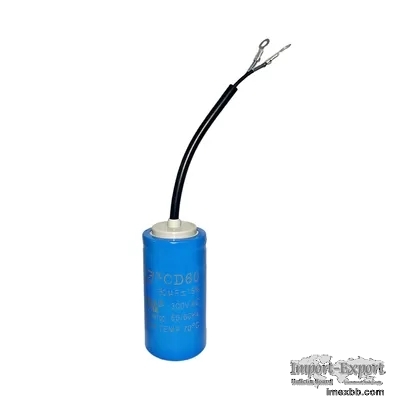

Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor Water Pump

Description
Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor Water Pump
Capacitor
CD60 Water Pump Start Capacitor Help To Start Big Power Single-Phase Ac
Motors With Flame Retardant Plastic Or Aluminum Can

As We All Know, Single-Phase AC Motor Is Not Like Three-Phase Motor, It
Can Turn Up When Given Electricity, It Needs A Starting Torque To Rotate,
And The Clockwise And Anti-Clockwise Of This Torque Determines The Motor's
Steering, There Are Many Ways To Start, One Of Them Is Capacitor Start, It
Is Customarily Called Starting Capacitor, Single-Phase Motor Needs It To
Turn Up Smoothly.However, Some Single-Phase Motors Have Not Only One
Capacitor, Some Motors Have Two Capacitors, Why Is That? Because Some Motors
Are Equipped With A Starting Capacitor And A Running Capacitor.

Main Features

Small Dimension / Big Capacitance / Light Weight / High Stability

Application

Apply To 50/60Hz Single Phase AC Motors For Starting Big Power. It Is
Widely Used To Heat Pump, Air Conditioning, Freezers, Refrigerators Etc.
When Motor Starting, It Provide For Higher Torque.

Basic Info.(Technical Parameters)

Operation temperature range -25℃～+70℃
Rated Voltage 110V.AC~330V.AC
Capacitance Range 20uF~600uF
Capacitance tolerance ±15% (L) , ±20% (M) , -10~30%
Tangent of loss angle(20℃) ≤15% (at 100Hz )
Flammability UL94V-0
Life Class
30000 Times

Withstand voltage between terminals 1.2Un / 2S (UL)
between terminals and case ≥2000VAC / 2S
Class of safety protection CQC / UL
Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor Water Pump
Capacitor 0Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor
Water Pump Capacitor 1

Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor Water Pump
Capacitor 2

Manufacturing Process Flow

Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor Water Pump
Capacitor 3

Typical Circuit

Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor Water Pump
Capacitor 4

Start Single Phase Motor And Matching Schematic Diagram Of The Run
Capacitor Wiring

Outline Drawing

Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor Water Pump
Capacitor 5

Packaging

Cd60 180Uf 300V AC Motor Metalized Polypropylene Film Capacitor Water Pump
Capacitor 6

Factory Information

Factory Size 30,000-40,000 square meters
Factory Country/Region No.7,East Xinyou Road, Ronggui
Number of Production Lines 10 Automatic Lines
Contract Manufacturing OEM Service Offered / Design Service Offered / Buyer
Label Offered
Annual Output Value Above US$50 Million

Why Choose XWD-XD Capacitors?

√ One Of The Largest Metalized Polypropylene Film Capacitor Manufacturers
In China;

√ Fast Lead Time Due To Fully Automatic Production And Vertical Raw
Materials Supply;

√ With World-Class Lab Center, Strong R&D Research And Self-Owned Film
Metallization Technology;

√ Highly Consistent Quality Products By Strictly Adhering To ISO And
IATF16949;

√ Proudly Work With Top Brands In Appliances As Well As The Leading Power
And New Energy Customers.
