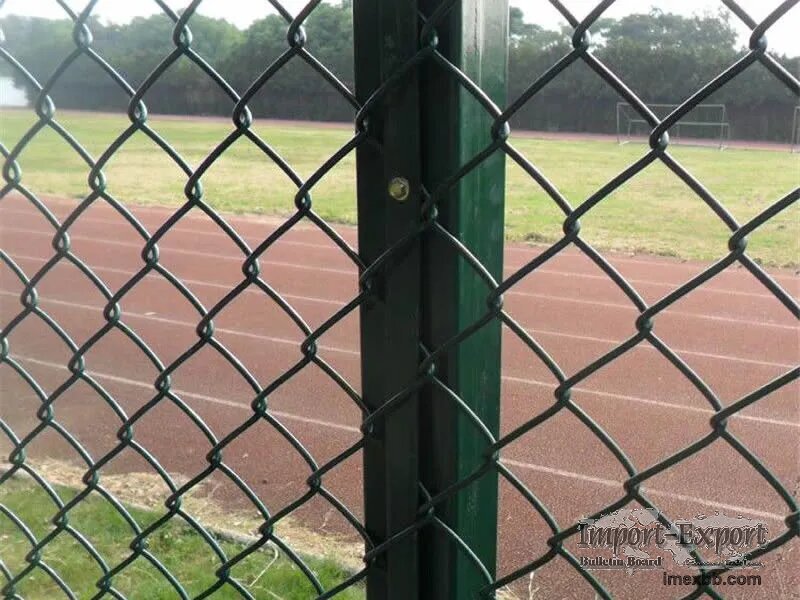

Chain Link Fence

1.0m-4.0m Height Chain Link Fence 40mm-75mm Mesh For Sports & Farm
Yuda offers durable chain link fence made of galvanized steel and PVC coated
steel wire. Available in standard 40mm to 75mm diamond mesh openings, wire
diameters from 2.0mm to 4.0mm, and fence heights ranging from 1.0m to 4.0m.
Supplied in 10m to 30m rolls with knuckle or twist edge finishes. Flexible for
uneven ground and easy to install with complete accessories. Our chain link
fence is widely used for residential boundaries, sports courts, farm
enclosures, industrial perimeters and construction site temporary fencing.
Chain link fence is woven diamond mesh fencing, made from galvanized steel wire
or PVC coated galvanized wire. Sold in roll form, it gets installed with
matching posts, rails, ties, clamps and gates.

It fits long fencing routes and uneven terrain perfectly. Common diamond hole
sizes cover 40mm to 75mm. Clients can confirm fence height, wire thickness,
surface treatment, pole specification and gate style to meet actual project
demands. Widely applied for property boundary, sports ground, farm, school,
factory, roadside and temporary site isolation.

Specifications
Material: Galvanized steel wire, PVC coated galvanized steel wire

Mesh Opening: 40mm, 50mm, 60mm, 75mm. Small holes suit sports and security
fencing, large sizes fit regular boundary use

Wire Diameter: Bare wire 2.0mm-4.0mm; PVC coated finished wire 3.0mm-5.0mm

Fence Height: 1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.4m, 3.0m, 3.6m, 4.0m

Roll Length: 10m, 15m, 20m, 25m, 30m, customized length acceptable

Surface Treatment: Hot dipped galvanized, electro galvanized, PVC coating,
coated accessories optional

Edge Style: Knuckle-knuckle, twist-twist, knuckle-twist. Knuckle edge fits
public areas, twist edge offers better safety protection

Color: Silver galvanized, green, black, grey, blue and custom colors

Post Type: Standard round steel post, square post available per drawings

Support Accessories: Line post, end post, top rail, tension wire, tension bar,
tie wire, clamps, hinges, lock parts and related fittings

Installation Way: Concrete embedded fixing, base plate mounting, temporary base
setup based on site condition

Gate Type: Single swing gate, double swing gate, sliding gate, pedestrian gate
and vehicle gate

Packing: Mesh rolls compressed and wrapped; poles and accessories packed
separately for container shipment
