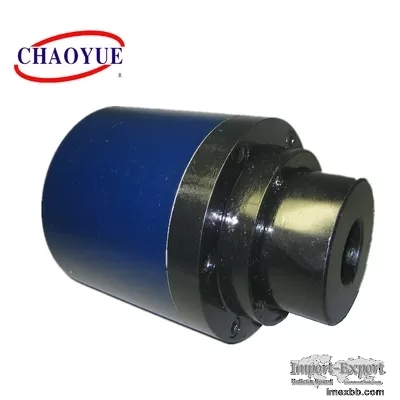

CKL-D 12.5 - 342 kg Semi Coupling Non Contact One Way Overrunning Clutch

CKL-D type flywheel is coupled with a coupling half, having individual functions,
seals and bearings. Unit dedicated oil lubrication.

It is for transmitting torque or two axes face displacement with backoff. CKL-B
type as compared with that more torque can be transmitted.

This combination is used as overrunning clutch, and is widely used in packaging,
transportation, metallurgy, mining and other institutions.

Mounting Example

CHAOYUE Semi Coupling Non Contact One Way Overrunning Clutch 0

CHAOYUE Semi Coupling Non Contact One Way Overrunning Clutch 1

Type Nominal torque
[N.m] Overrunning Limiting Speed
[r / min] Dimension in Contour [mm] Weight
[kg]
nmin nmax d [H7] dk [H7] D D1 L L1 L2 bn x tn
CKL-D30110 580 800 2500 30 28 - 45 110 66 146 53
86 8 x 3.3 12.5
CKL-D40125 800 780 2500 40 36 - 55 125 78 168 62
98 10 x 3.3 14.5
CKL-D45130 815 740 2500 45 42 - 58 130 80 168 62
98 12 x 3.3 16
CKL-D50150 1400 720 2500 50 48 - 65 150 94 207 82
117 14 x 3.8 24
CKL-D55165 1700 660 2500 55 54 - 68 165 100 233.5 95
130 14 x 3.8 35.6
CKL-D60170 2200 610 2000 60 58 - 70 170 108 244 97
138 16 x 4.3 37
CKL-D70190 4420 600 2000 70 68 - 78 190 115 312.5 130
172.5 16 x 4.3 67.5
CKL-D80210 6800 490 2000 80 78 - 85 210 125 340 153
177 18 x 4.4 80
CKL-D90230 11000 480 2000 90 90 - 98 230 135 369 150
209 22 x 5.4 127.5
CKL-D100270 16000 450 1500 100 96 - 105 270 145
422.5 186 222.5 25 x 5.4 162.5
CKL-D110320 22000 420 1500 110 110 -125 320 160 455
188 252 28 x 6.4 203
CKL-D120360 25000 400 1500 120 115 - 135 360 190 480
202 262 32 x 7.4 263
CKL-D130400 38000 375 1500 130 125 - 150 400 210 500
207 275 36 x 8.4 342
