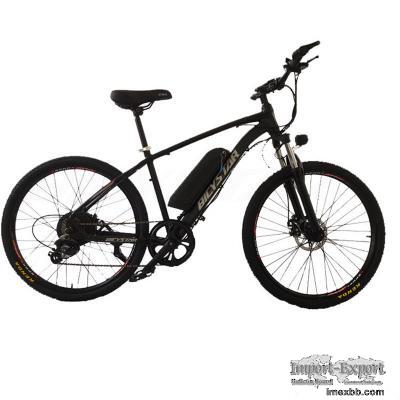

China Popular 2021 Electric Mountain Bike

China Popular 2021 Electric Mountain Bike with Suspension Fork Bicystar for
Sale
BICYSTAR group is specialized in manufacturing and exporting electric bicycle
and all kinds of adult bikes.
We have over 18 years experience for doing OEM bicycle for foreign customers.
Our factory have our own alloy&steel frame workshop and painting workshop. It
is located in the biggest bicycle industry development zone in Tianjin. And our
factory covers 20.000 square meters and there is totally more than 380 staffs
working in each department. We have been exported bicycles and bicycle parts to
more than 50 countries and areas all over the word.
Frame 27.5 inch frame, aluminum Shift lever Shimano, KSLM610RA
DEORE RIGHT 10-SPEED, 2050MM INNER
Fork SF15-XCT-RL-DS 27.5" remote air lockout/ pre-load adjust travel: 100mm
1-1/8" x 225L Rear derailleur Shimano, KRDM610SGSL DEORE SGS 10-SPEED TOP-
NORMAL SHADOW DESIGN DIRECT ATTACHMENT Alloy
Head tube assembly Neco, H148M, φ28.6*44*30mm, H: 20mm, conical cover
15mm, W/H2861 aluminum Flywheel Shimano, KCSHG5010136 10-SPEED 11-13-
15-17-19-21-24-28-32-36T Steel
Handlebar JB-AL101, 660W*2.4T*6° Knurled part 31.8Φ aluminum Brake
lever Shimano, oil disc integrated brake lever
Stem JB-A112-8, Φ28.6*Φ31.8*90EXT*41H*7°, aluminum without LOGO Motor
Bafang, M300, 48V, 250W, 3 sensors (torque, crank speed, vehicle speed), CAN-
bus controlled
Grip HL-225, 130mm black, with aluminum lock ring and end cap, TPR Display
screen Bafang, DPC10, Central bright clear intuitive information screen and
easy remote controller
Rim HLQC-29A, 27.5" aluminum rim for double-layer disc brakes, 13G*36H, A/V
nozzle. Aluminum Crank Bafang,170mm, flower star center
Tire CST, C-1820, 27.5*2.10 Chainwheel Bafang, 11/128"*46T
Inner tube CST, 27.5" X 2.1" L:40mm A/V Battery Li-ion 48V, 10.4Ah
13S4P can bus down tube style with deck and locking system LG 2600 cells
Front hub DH901YF, M9*100*108, 13G*36H, aluminum quick release, effective
locking distance 115MM, six-hole aluminum Charger 54.6V2.0A lithium
battery charger, DC2.1
Rear hub DH901YR, M10*135*145 13G*36H, 10S card type, locking effective
distance 154MM, six-hole aluminum Saddle KS-8016
Disc brake rotor Tektro, TR-180-11 Dia: 180mm with mounting screws Steel
Chain KMC,X10 1/2"x11/128" 126L 10S
Disc brake rotor Tektro,TR-160-11 Dia: 160mm with mounting screws Steel
Pedal B087DU, all aluminum pedal 9/16 axis, BS reflector aluminum alloy
Packing: 85% SKD packing, 1pcs/carton for Mountain bike
Packing Size: 142*25*77CM
