Chinese Adjustable Botton Die High quality M3-12

Round Adjustable Dies are used to cut external right hand threads. They are
made with a slot in the circumference and an adjusting screw to allow for
cutting a slightly smaller size. Used for cutting external right-hand threads.

Technical Data:
Type of thread Metric ISO-thread
Standard ANSI
Material Alloy Steel/HSS-G
Tolerance 6g
HRC 58-64
Surface Bright Finished
Cutting Direction Right
Thread Angle 60°
Application External Thread Cutting

Size Limit D E
M1.6 6g 13/16 1/4
M1.8 6g 13/16 1/4
M2 6g 13/16 1/4
M2.2 6g 13/16 1/4
M2.5 6g 13/16 1/4
M2.6 6g 13/16 1/4
M3 6g 13/16 1/4
M4 6g 13/16 1/4
M5 6g 13/16 1/4
M6 6g 13/16 1/4
M8 6g 1 3/8
M10 6g 1 3/8
M10 6g 1 1/2 1/2
M12 6g 1 1/2 1/2
M14 6g 1 1/2 1/2
M16 6g 1 1/2 1/2
M16 6g 2 5/8
M18 6g 1 1/2 1/2
M18 6g 2 5/8
M20 6g 1 1/2 1/2
M20 6g 2 5/8
M22 6g 2 5/8
M24 6g 2 1/2 3/4
M27 6g 2 1/2 3/4
M30 6g 2 1/2 3/4

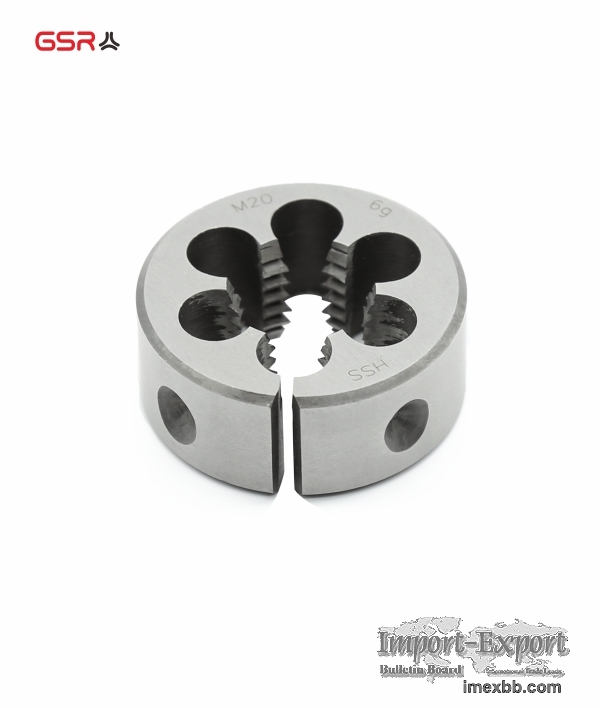

Chinese Adjustable Botton Die High quality M3-12
