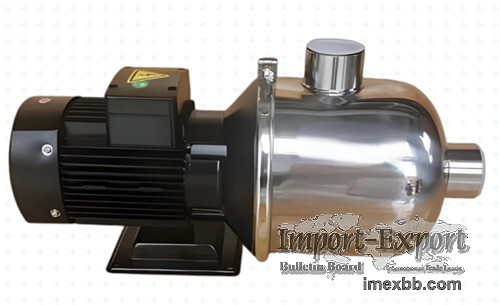

CHL horizontal stainless steel multistage centrifugal pump

CHL (Light-duty Horizontal Multistage Centrifugal Pump) is a device used for
household central air conditioning circulation and industrial liquid transfer,
mainly transporting clean, non explosive liquids such as demineralized water, soft
water, purification system liquids, and light oil. Its working temperature ranges
from -15 ℃ to+110 ℃ (divided into room temperature and hot water types), with a
maximum operating pressure of 10 bar, suitable for weakly acidic to weakly alkaline
media with pH values of 4-9.
The pump adopts stainless steel (304/316) overcurrent components and a horizontal
multi-stage centrifugal structure, equipped with a fully enclosed air-cooled motor
(protection level IP55, insulation level F), supports single-phase 220-240V, three-
phase 220-240V/380-415V voltage, and has the characteristics of low noise,
corrosion resistance, and compact size. The product is widely used in fields such
as small central air conditioning circulation, industrial cleaning, water
treatment, cooling systems, and aquaculture etc.

Minimum Order: 1 sets
