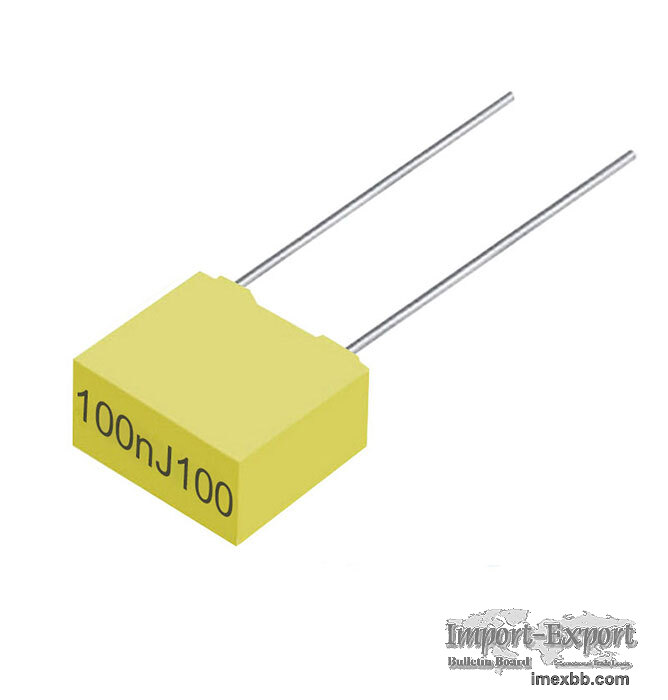

CL23B 100NJ100 metallized film capacitor

CL23B 100NJ100 metallized film capacitor metallized polyester film capacitor
manufacturers film capacitor for sale

Capacitor features:
Small size, good self-healing, strong anti-pulse ability, high reliability

capacitors capacitance Electrical characteristics:
Technical requirements reference Standard GB/T 7332 (IEC 60384-2)
Climatic Category 55/125/56
Operating Temperature -55℃~105℃（+85℃~+105℃：decreasing factor1.25% per℃
for UR）
Rated Voltage 63V,100V,250V
Capacitance Range 0.001μF~1μF
Capacitance Tolerance ±5%(J) 、±10%(K)
Withstand Voltage 1.5UR , 5sec
Insulation Resistance(IR) Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s
at 100V,20℃,1min
Dissipation Factor (tgδ) 1% Max , at 1KHz and 20℃

JYH HSU(JEC) ELECTRONICS LTD. is Provide Resistors For Sale and Varistor
05d561k Manufacturer and Film Capacitor For Sale, If You Need, Welcome To
Contact Us To Know More.

If you want to know more industry information about resistors and capacitors,
please click here.

https://www.jeccapacitor.com/film-cap , acitor/mini-box-metallized-polyester-film-
capa , citor-meb-cl23b100nj100.html

Minimum Order: 1000 pieces
