Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.2187

PRODUCT DESCRIPTION
NO.21871-B Clamshell Phone Front Cover (1*1)

No.21871



[Mold size] [Standard]
L × W Height
* 350x450 * 401
[Tool life] * LKM
* 500K shots
[Gate]
* Design with side gate [Slide]
Pin point gate to side gate * 6
[Type] [Lifter]
* Three-plates mold structure * 10
[Injection/runner type]
* Cold runner


Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871 0



[Surface finish]
◇ Make the mold obtain a lower roughness, and the molded

parts have smoother surface

- A surface EDM with VDI24#



Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871 1



[Steel of

cavity & core]

◇ Hardening greatly improves the physical hardness and wear resistance

of the mold, and greatly improves the ability to resist corrosion

Harden

(1*2/S136)



Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871 2



[Mold net weight]
* 390kg
[Part Net Weight]
* 5g / 55.55X11.24X108.75mm
[IMM Tonnage]
* 110T

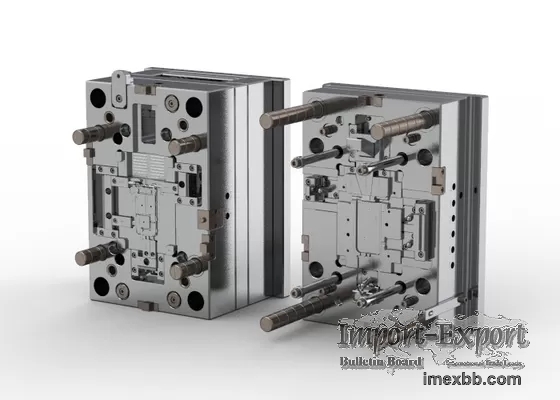

Display diagram



Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871
3Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871
4Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871
5Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871 6
