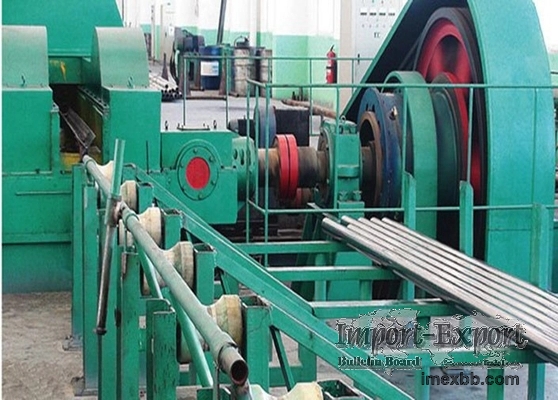

Cold Two Roll Pilger Mill Machine LG80 Stainless Steel Pipe Rolling Mill Eq

Cold Two Roll Pilger Mill Industry, Stainless Steel Pipe Making Equipment





Quick Detail:



Type: cold pilger mill
Brand name: Hengli
Model number: LG80
Input material: common carbon steel, alloy, nonferrous metal
After-sales service provided: overseas service available


Main function


It's also called cold pilger mill, is applied to roll carbon steel, stainless
steel, non-ferrous metal, rare metal and alloy steel in cold condition. Its
products have been widely used in such industries as metallurgy, automotive
industry, bearing manufacturing, oil machinery manufacturing and so on. All of
the out purchases that we used are famous brand in our market, which is one of
the main reason of our good machine quality. We have various kinds and complete
spec. Our machine widely export to countries as India, Iran





Specifications:



No.

Name

LG80



1

Shell OD(mm)

40~114

mm

2

She , ll WT(mm)

4~13

mm

3

Shell Length(mm)

6

mm

4

Fini , shed tube OD(mm)

30~108

mm

5

Fin , ished tube WT(mm)

2.2~12

mm

6

Fin , ished tube Length(m)

15

m

7

Strok , e Frequency of Mill time/min

60~85

time/min

8

Stroke of Rolling mill bus(mm)

903

mm

9

Feedi , ng Length(mm)

2.7~10.3

mm

10
,
rotation angle

41°



11

Roll Diameter(mm)

375

mm

12

Power(KW)

132

KW

13

S , ize

(L×W×H)

35×5.4×2.6

m< , br>




Competitive Advantage:



We provides custom designed solutions on pilger mills and tube reducers. Our
true value is in our expertise in engineering designs through active tri-matrix
software and then constructing these designs using our 15+ years of production
& maintenance experience. We pride ourselves in offering good engineering
solutions to your tube manufacturing process with a commitment to customer
satisfaction. Our global customer base covers all alloys such as aluminum,
stainless steel, copper, titanium, zirconium, gold, silver, platinum,
palladium, and other special alloy materials.





Cold Two Roll Pilger Mill Machine LG80 Stainless Steel Pipe Rolling Mill
Equipment 0

Click to Enlarge
