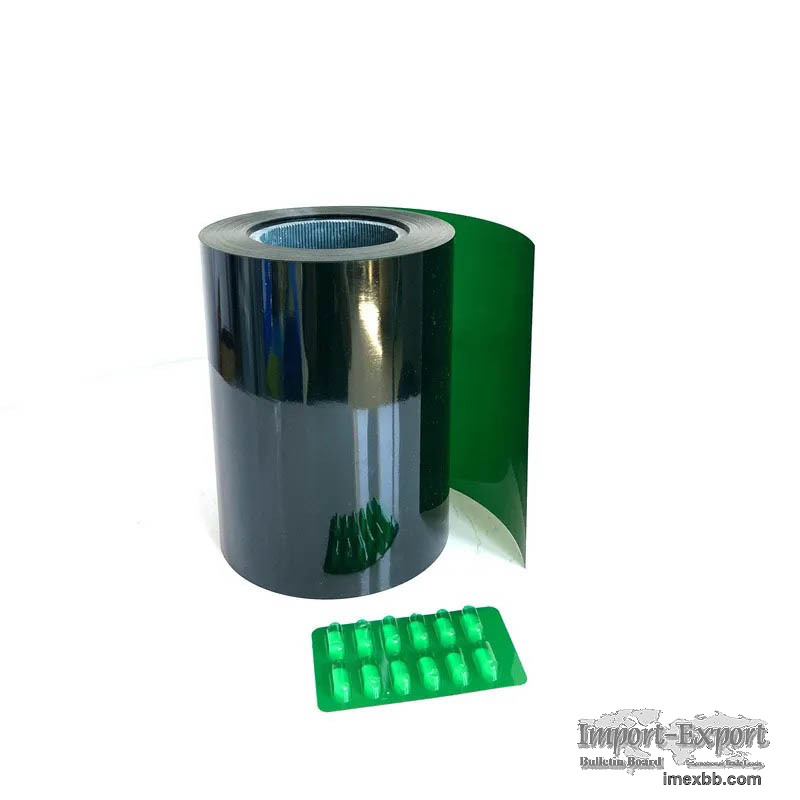

Colored 40g/60g PVC/PVDC Coated Film for Medical Packaging

This product uses high-quality PVC as the base material, combined with a high-barrier
PVDC coating. It offers excellent moisture and oxygen barrier properties, effectively
extending the shelf life of pharmaceuticals. Custom colors (blue, green, amber,
transparent, etc.) are available to enhance brand recognition or meet light-blocking
requirements for certain medications.

Product Requirements: Glossy and uniform transparency. No cracks, scratches, dents,
punctures, delamination, missing spots, or oil stains are allowed. The film roll should
be flat, evenly cut, and uniformly elastic.

Coating Weight and Thickness
Coating Weight (PVDC): 40g/m² and 60g/m² indicate the weight of the PVDC coating.
Typically, the higher the coating weight, the better the barrier performance. Coating
weights of 90g/m², 120g/m², or even higher are available to meet the needs of
different pharmaceutical products.

PVC Base Thickness: Common base thickness ranges from 200µm to 350µm,
customizable based on application requirements.

PVC/PVDC Composite Film Specifications

Coating Weight: 40g/m², 60g/m²
Thickness: 0.25mm, 0.35mm, or customized
Coating Type: High-barrier PVDC
Colors: Transparent, Blue, Green, Milky White, and other customizable options
Roll Width: Slit rolls: 70–300mm; Jumbo rolls: 500–1600mm, customizable (suitable for
various automatic packaging machines)
Surface: Bright, clean, glossy
Core ID: 76mm
Applications: Tablets, capsules, injections, oral liquids, etc.
Packaging: Wrapped in plastic bags; packed in cartons; or placed on pallets


PVC/PVDC Composite Film Material Features

1.High Barrier Performance: The core advantage of PVC/PVDC coated film is its
outstanding barrier properties. The PVDC (polyvinylidene chloride) coating
significantly reduces water vapor and oxygen permeability, improving barrier
performance by 5–10 times compared to plain PVC rigid film. This is critical for
protecting moisture- and oxygen-sensitive drugs and prolonging shelf life.
2.Excellent Formability: PVC offers excellent thermoformability, making it suitable for
blister packaging. PVDC-coated film also supports good heat forming and is
compatible with high-speed production lines.
3.Chemical Stability: PVDC coating is chemically inert and will not react with
pharmaceuticals, ensuring product safety and efficacy.
4.Mechanical Properties: Good rigidity and flexibility, along with excellent scratch and
abrasion resistance.
5.Cost-Effective: Compared to other high-barrier materials, PVC/PVDC composite sheet
offers better cost-effectiveness.
6.Color Customizability: Available in a variety of colors (e.g., transparent, white, amber)
to meet marketing or drug-specific packaging needs. For example, opaque blisters can
reduce children's curiosity about medications by concealing their color and shape.
7.Regulatory Compliance: Films for medical packaging must meet stringent regulatory
standards. Many PVC/PVDC composite sheet manufacturers state compliance with
GMP standards and pharmaceutical packaging regulations, such as USFDA Type III
DMF.



Applications of PVC/PVDC Composite Film

1.Blister Packaging: Mainly used for solid dosage forms (e.g., tablets, capsules, pills), as
well as certain health supplements that require high-barrier protection.
2.Other Uses: Also applicable in roll stock packaging, outer packaging, fill-and-seal
packaging, lamination, and printing.

Company Profile:

Hongchang Aluminum specializes in the manufacturing, research, and supply of plastic
packaging films, such as pharmaceutical PVC, PVC/PVDC, PVC/PE, aluminum foil, PTP
aluminum foil, PVC rolls/sheets, Alu-Alu, tropical blister foil, and cold-forming
aluminum foil. These are widely used in pharmaceutical packaging, food packaging,
and printing industries.

Our products are sold worldwide, with major markets in Southeast Asia, South Africa,
South America, and Europe. We are trusted by customers for our high quality, fast
delivery, and certifications such as ISO9001 and ISO14001.

If you're interested in our products, feel free to contact us. We provide professional
service, high-quality products, and complete plastic film packaging solutions.

Why Choose Us:

1.Free samples available (shipping cost covered by customer; refunded upon placing
an order).
2.On-time delivery and quick response — we respond to inquiries within 24 hours.
3.Immediate feedback handling after goods are received.
4.Logo printing and other customization accepted.
5.We find the most economical and reliable shipping solutions to ensure safe delivery.

Minimum Order: 1 tons
