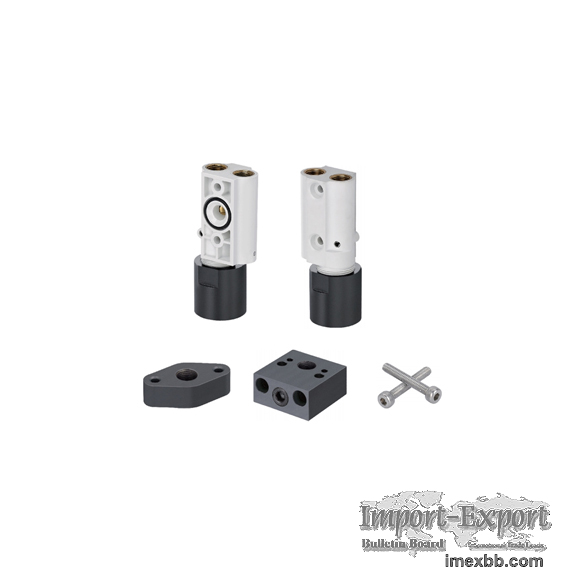

COMBINED TYPE MULTISTAGE VACUUM GENERATOR AM/AL/AH Combined Type

Quick evacuation in a low vacuum level range, reduce cost and shorten the
working cycle
It can produce large vacuum flow, and handle all porous workpieces fast and
safely
Easy installation and easy operation
Reduce product noise greatly

FEATURES
COMBINED TYPE MULTISTAGE VACUUM GENERATOR
Energy-efficient multistage nozzle design
It has a very strong suction capacity
With mounting bracket
External silencer
SELECTION GUIDE
AM/AL/AH COMBINED TYPE VACUUM GENERATOR
AM 200M P - N
  ①    ②    ③   ④


① Series ② Specification ③ Exhaust type ④ Sealing
AM - Universal type(-89kPa) 150M Nil - Standard N - NBR
AL - Large vacuum flow type(-81kPa) 200M P - Lateral exhaust E -
EPDM
300M F - Fluorine rubber
400M
500M


Selection - AM series
Model/Specification 150 200 300 400 500
AM□M-N AM150M-N AM200M-N AM300M-N AM400M-N AM500M-
N
AM□MP-N AM150MP-N AM200MP-N AM300MP-N AM400MP-N
AM500MP-N

Selection - AL series
Model/Specification 150 200 300 400 500
AL□M-N AL150M-N AL200M-N AL300M-N AL400M-N AL500M-
N
AL□MP-N AL150MP-N AL200MP-N AL300MP-N AL400MP-N
AL500MP-N

Technical parameters

Model Rated air
supply pressure
bar Max.
vacuum level
-kPa Max.
vacuum flow
NL/min Air
consumption
NL/min Noise
level
dB(A) Working
temperature
℃ Weight
g Recommended hose dia.(mm)(Hose outer dia.)Air supply port
(P) Recommendedhosedia. mm (Wired hose inner dia.)Vacuum port
(V)
AM150M 6 89 1,880 1,120 80 -10~80 3,724 φ16 φ32
AM200M 6 89 2,200 1,460 81 -10~80 3,892 φ16 φ32
AM300M 6 89 3,150 2,200 81 -10~80 5,525 φ16 φ45
AM400M 6 89 3,710 2,790 81 -10~80 6,447 φ16 φ45
AM500M 6 89 4,570 3,520 82 -10~80 7,929 φ16 φ60
AL150M 6 81 1,660 650 80 -10~80 3,724 φ16 φ32
AL200M 6 81 1,950 830 81 -10~80 3,892 φ16 φ32
AL300M 6 81 2,840 1,240 81 -10~80 5,525 φ21 φ45
AL400M 6 81 3,340 1,650 81 -10~80 6,447 φ21 φ45
AL500M 6 81 3,970 2,100 82 -10~80 7,929 φ16 φ60

SPECIFIC
COMBINED TYPE MULTISTAGE VACUUM GENERATOR

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply pressure
bar Air
consumption
NL/min 0 10 20 30 40 50 60 70 80
Max.
vacuum level
-kPa
AL150M 6 650 1,660 870 720 450 240 160 115
70 32 81
AL200M 6 830 1,950 1,140 870 520 305 230 160
105 38 81
AL300M 6 1,240 2,840 1,660 1,330 810 580 360 265
155 45 81
AL400M 6 1,650 3,340 2,200 1,730 1,110 630 590 370
225 80 81
AL500M 6 2,100 3,970 2,710 1,990 1,320 790 660 360
270 92 81


Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply
pressure
bar Air
consumption
NL/min 10 20 30 40 50 60 70 80 Max.
vacuum level
-kPa
AL150M 6.0 650 0.007 0.019 0.028 0.051 0.105 0.198 0.210
0.370 81
AL200M 6.0 830 0.005 0.013 0.023 0.040 0.060 0.098 0.150
0.300 81
AL300M 6.0 1,240 0.004 0.011 0.018 0.030 0.040 0.070 0.100
0.200 81
AL400M 6.0 1,650 0.003 0.008 0.010 0.150 0.030 0.060 0.080
0.150 81
AL500M 6.0 2,100 0.002 0.005 0.008 0.010 0.022 0.040 0.060
0.100 81

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply
pressure
bar Air
consumption
NL/min 0 10 20 30 40 50 60 70 80
Max.
vacuum level
-kPa
AM150M 6.0 1,120 1,880 1,210 730 640 490 340 200
75 25 89
AM200M 6.0 1,460 2,200 1,490 930 800 650 490 245
85 11 89
AM300M 6.0 2,290 3,150 2,100 1,410 1,180 930 660 365
105 75 89
AM400M 6.0 2,790 3,710 2,480 1,800 1,450 1,100 870 370
195 80 89
AM500M 6.0 3,250 4,570 3,240 2,330 1,800 1,470 1,140 700
205 115 89


Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply
pressure
bar Air
consumption
NL/min 10 20 30 40 50 60 70 80 Max.
vacuum level
-kPa
AM150M 6.0 1,120 0.007 0.017 0.026 0.040 0.060 0.080 0.120
0.600 89
AM200M 6.0 1,460 0.005 0.012 0.022 0.030 0.040 0.060 0.110
0.330 89
AM300M 6.0 2,290 0.004 0.010 0.013 0.023 0.030 0.040 0.080
0.190 89
AM400M 6.0 2,790 0.003 0.008 0.012 0.020 0.025 0.030 0.060
0.150 89
AM500M 6.0 3,250 0.002 0.005 0.008 0.015 0.020 0.027 0.050
0.120 89

DIMENSIONS
COMBINED TYPE MULTISTAGE VACUUM GENERATOR
