Commercial Industrial Automatic Sugar Cone Processing Equipment With One Ye

Commercial Industrial Automatic Sugar Cone Processing

Equipment With One Year Warranty

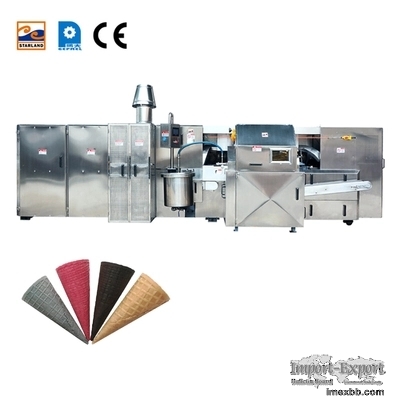

Features of Sugar Cone Processing Equipment

We are a professional ice cream cone making machine manufacturer.

Our machines are used to roll all kinds of ice cream cones, wafer cones, sugar
cones, egg rolls and other cookies; we can change the mold to produce different
shapes of cones and cookies.



The machine consists of a 200 x 240 mm baking pan made of high quality ductile
iron. Each baking pan can be made into two cone plates. This machine is
suitable for making flat sugar cones less than 180 mm in length. Taper, weight,
thickness and pattern spacing can be customized according to customer
requirements. The machine is driven by three-phase power supply, the oven is
heated by gas (natural gas or liquefied gas), electric heating and ignition,
and the oven temperature is displayed electronically. The production capacity
is very strong, and it is fully automatic from spraying, baking, forming,
falling mold, conveying products, stacking and counting.



1. This machine is suitable for making sugar cone with length less than 180mm.
Taper, weight, thickness and pattern spacing can be customized according to
customers' requirements.
2. The machine consists of 200*240mm baking plates, the material of baking
plates is high quality ductile iron, each plate can make two cone plates.
3. The machine is driven by three-phase power supply, the back oven is heated
by gas (natural gas or liquefied gas), electric ignition and electronic display
of oven temperature. The production capacity is very strong, from batter
spraying, baking, forming, demoulding, conveying products, stacking and
counting are all automated.







Sugar Cone Processing Equipment Specifications





Applicable Industries Food & Beverage Factory, Other
After Warranty Service Video technical support, Online support, Spare parts,
Field maintenance and repair service
Local Service Location None
Showroom Location None
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2021
Warranty of core components 1 Year
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear,
Pump
Condition New
Place of Origin China
Brand Name STARLAND
Model Number CBII-61A
Voltage 220V/380V
Weight 6500KG
Dimension(L*W*H) 7000L x 2400W x 1800H
Certification CE
Warranty 1 Year
Key Selling Points High Productivity
Number of Baking Plates: 61
Standard Cone /hour**: 2200(23°,L170mm)
Place of Origin: China
Gas consumption(kg)/ hour: 6-7
name: Sugar Cone Processing Equipment
Material: Stainless Steel
Main Motor Specification: 2.0hp;1.5KW




Our Services

1. All the products have one year guarantee.

2. Providing professional installation instructions and video of troubleshoot.

3. We supply after sales service for 24 hours, 7 days per week. Customer can
contact us any time.





FAQ

♦ What kind of ice cream cone your machine can make?

Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer
biscuit cone.

♦ What’s the voltage of your machines?

380V,other voltage can be customized.

♦ 3.How can i get quotation?

Send your requirements(cone shape,size,angle,and picture)and leave your
email,we will send you

quotation soon.

♦ Do you have automatic ice cream cone production line?

Yes,we have several models can be choose.

♦ Which kind of payment method you can accept?

T/T.Western Union,L/C.

♦Why should you buy from us and not from other suppliers?
With over 70 years of design and development experience. We don't sell either
cones or machines.

We help you go from cone to solution.



After Sale Service

♥ Warranty policy one year from shipment

♥ We will send you the replacement after received the broken part

♥ Evaluate the customs rish and choose safest shipping company before
shipping.

♥ Follow status up time by time until the goods arrived.
