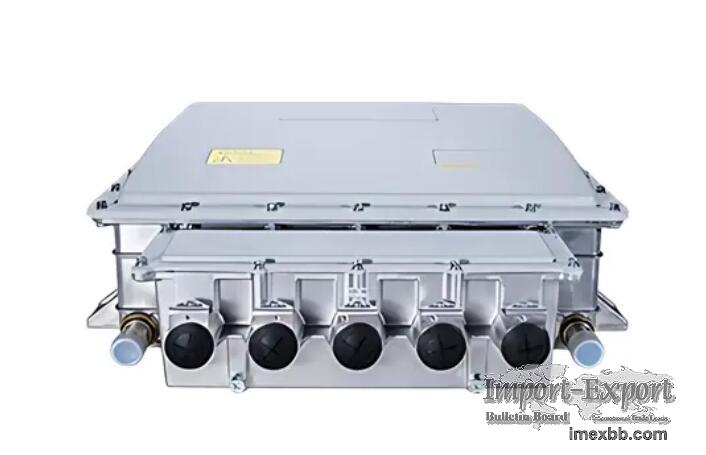

Commercial Vehicle Motor Controller

electric vehicle brushless controller
motor control unit for electric vehicle / motor control unit automotive /
electric vehicle motor control unit

Technical features of the electric car motor controller:

(1) use SVPWM modulation algorithm to improve the energy efficiency ratio of
the power system;

(2) configure high-efficiency CAN communication module to control the normal
operation of the system;

(3) have liquid temperature control system and excellent waterproof and
moisture-proof performance to extend the use time of the product and the
vehicle;

(4) adopt torque vector control mode to realize energy recovery and
utilization;

(5)have perfect protection function to ensure the safe operation of the
vehicle.


Specification of Commercial Car Motor Controller, Auto Motor Controller
Product name Main Drive Motor Controller
Applicable motor types Permanent magnet synchronous motor & Three-phase
asynchronous motor
Applicable models logistics vehicle & medium-sized bus
Product model V6-H-4D110G V6-H-2D60G
Rated input voltage DC 540V DC 336V
Rated power 110kW 60kW
Input voltage ranges DC 350-750V DC 200-500V
Rated output current 210A
Maximum output current 350A
Output frequency ranges 0~800Hz
Water proof IP67
Heat dissipation mode water-cooling
Dimension 410*314*118mm, 336*314*118mm
Net weight 9.5kg, 8.5kg

Characteristics of Commercial Electric Car Motors and Controllers
Automotive motor controller features:
(1) High performance: the controller has a high overload capacity at low speeds
(usually more than twice the rated current), and a wide weak magnetic constant
machine capacity at high speeds.
(2) High torque: when the starting torque is large, the controller is required
to output a larger current at low speed.
(3) Large speed: In the higher speed range, the drive system needs a larger
constant power area, therefore, the electric vehicle brushless controller is
required to have a strong weak magnetic capability.
(4) High efficiency: The energy of new energy vehicles are valuable, and the
efficiency of the drive system directly affects the range, so the high
efficiency of the drive system is required to minimize the loss of the drive
system.

Now the price of motor control unit for electric vehicle is reasonable, if you
have needs, please contact us.
