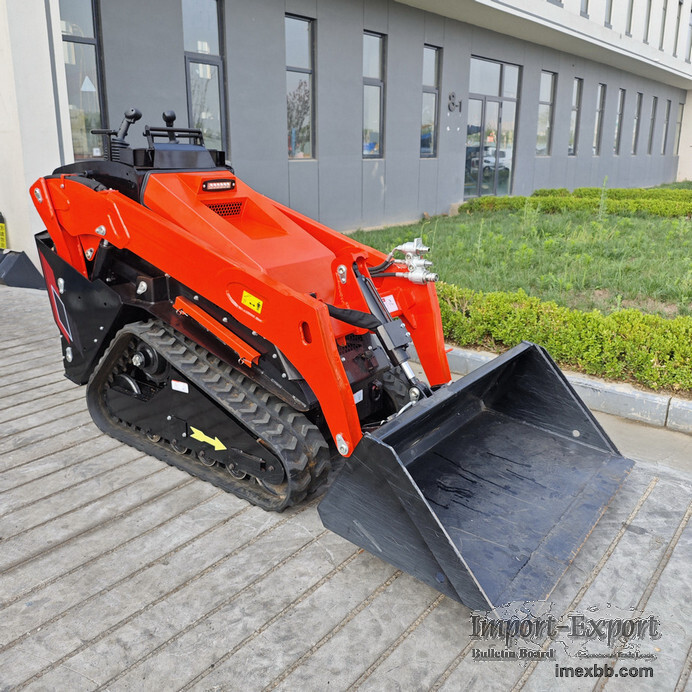

Compact Track Loader Model T1000

Application:
It is mainly used in situations where the working site is small, the ground is
uneven, and the work content changes frequently. It is suitable for
infrastructure construction, Industrial applications, dock loading and
unloading, urban streets, residential buildings, barns, livestock sheds,
airport runways, etc. It can also be used as auxiliary equipment for large-
scale engineering construction machinery.


Feature:
1. Compact and agile, facilitating operations in small terrains and confined
spaces.
2. Convenient to operate and easy to transport;
3. Constructed from high-quality, thickened steel and treated with a powder-
coating process for superior rust and corrosion resistance.
4. With 360-degree body rotation, its agile chassis brings convenience to
outdoor operations.


Main Technical Parameters:
Engine:
Engine model: KUBOTA D1105 Diesel Engine
No. of cylinders: 3
Rated Power: 17.1 kW
Performance:
Operating height: 2794 mm
Height to bucket hinge pin: 2140 mm
Overall height: 1584 mm
Overall length with GP bucket: 2691 mm
Wheel base: 900 mm
Overall width: 1250 mm
Min. ground clearance: 200 mm
Max. dumping height: 1522 mm
Rated load: 500 kg
Rate bucket capacity: 0.19 m³
Bucket width: 1250 mm
Track width: 230 mm
Operating weight: 1817 kg
Operating system pressure: 19.5 MPa
Fuel tank capacity: 30 L
Travel speed: 0-4.5 km/h


Note:
1. Technical specifications are for standard model (without cabin) only.
2. Other optional parts & accessories and colors are available upon request.
3. All specifications and design characteristics are subject to change without
prior notice.
