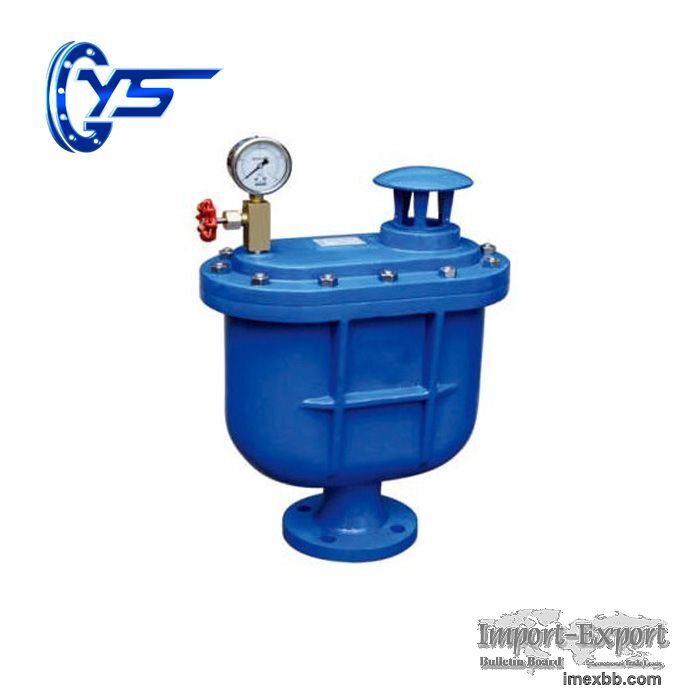

Compound exhaust valve CARX-10C Compound Exhaust Valve Factory

Compound exhaust valve CARX-10C Compound Exhaust Valve Factory
Medium: water
caliber: DN50-DN300
pressure: 1.0-1.6MPA
body material: WCB
connection method: flange
design standard: national standard
HBYS Valve Details
Compound exhaust valve CARX-10C Material of main parts
Part Name material
Body / bonnet WCB
Float 304
Disc 304

Composite exhaust valve performance specifications
model Nominal pressure
(MPA) Test pressure (mpa) water Applicable temperature (℃)
Applicable medium
strength seal
CARX-10C 1.0  1.50  1.10  ≤80 ℃ water

Composite exhaust valve dimensions and connection dimensions
model Nominal diameter
(mm) Size (mm)
L O C g bf n-φd
CARX-10C 50 320 165 125 99 19-3 4 * φ19
65 320 185 145 118 19-3 4 * φ19
80 350 200 160 132 19-3 8 * φ19
100 440 220 180 156 19-3 8 * φ19
125 490 250 210 184 19-3 8 * φ19
150 540 285 240 211 19-3 8 * φ23
200 700 340 295 266 20-3 8 * φ23
250 870 395 350 319 22-3 12 * φ23
300 1040 445 400 370 24.5-4 12 * φ23

If you are finding Cast Steel Globe Valve supplier in China, we will be your
best choose! We have our own factory, so we can give you a cheap price!
