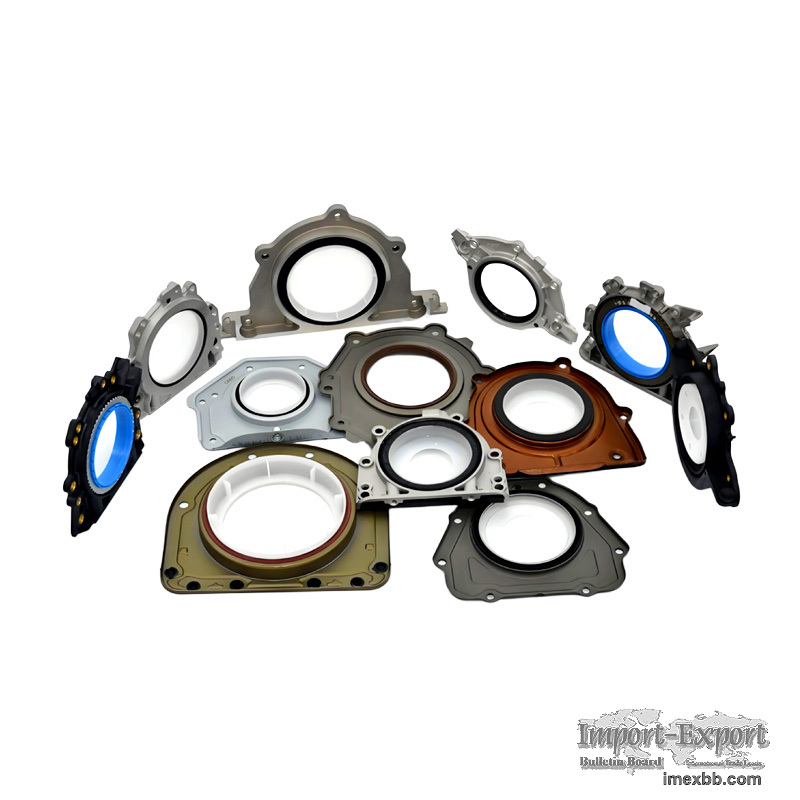

Comprehensive Guide to Rear Main Seal Performance and Reliability

On most engines, the quietest part is also the most unforgiving. The rear main
seal sits where the crankshaft leaves the block and the transmission begins;
you usually only notice it when the bellhousing smells faintly of hot oil and
the underside collects a dark halo of dust. A good one lasts for years without
comment. A poor choice, a worn shaft, or a hurried installation will remind
everyone in the shop how a centimeter of elastomer can park a heavy truck.

What the rear main seal must do sounds basic, but the physics are not. The lip
must ride a rotating surface, maintain a stable oil film, manage crankcase
pressure pulses, reject dust, and shed heat, all while the crank sees micro-
motions from bearing clearance. That is why material and lip geometry are never
afterthoughts. Older rope or two-piece designs still exist in legacy engines.
Most modern applications rely on one-piece elastomeric or PTFE seals with a
garter spring for radial load, directional micro-grooves for oil return, and an
outer shell that resists creep in aluminum housings.

Material selection should be sober and tied to the duty cycle. NBR (nitrile
rubber) remains appropriate for standard temperature automotive engines and
provides a cost-effective baseline. FKM (fluoroelastomer) tolerates elevated
sump temperatures, aggressive oil additives, and extended drain intervals
common in turbocharged diesel fleets. PTFE (polytetrafluoroethylene) offers
very low friction and excellent wear resistance where service life and cold-
start scuffing matter, provided the installer respects dry-fit requirements
when specified by the manufacturer. As a working figure, rear main seals
typically handle 0.05–0.3 MPa of differential pressure; heavy-duty or
specially engineered designs may be validated to around 0.5 MPa, though
sustained crankcase overpressure should never be “handled” by the seal—it
should be prevented by a healthy PCV or breather system.

Surface and hardware matter as much as the polymer. A crankshaft sealing
surface with the correct finish (fine enough to support an oil film, not so
glossy that it starves the lip) prevents heat buildup. Spiral lead from
machining can pump oil the wrong way and defeat even the best design;
directional grooves on the lip are chosen to counter that effect. A light bevel
on housing bores, accurate concentricity between crank centerline and seal
bore, and a rigid installation tool keep the lip from nicking and the shell
from cocking.

Failure symptoms are familiar: oil weeping at the bellhousing, splatter inside
the clutch cover, a fleet driver reporting top-ups without visible drips under
short stops. Causes repeat themselves too. Overdue oil changes harden lips.
Scratches or grooves on the crank make a poor partner for a precision edge.
Main bearing wear increases shaft runout and beats the lip. A blocked PCV
raises crankcase pressure and physically urges the seal outward. And sometimes
the culprit is simply an eager mallet that deforms a spring-loaded lip during
installation.

Installation is where many good seals are lost. A few habits are worth writing
on the shop wall. Inspect the crank surface closely; if a wear groove exists,
use a sleeve rather than “hoping the lip lands elsewhere.” Verify the bore is
clean, burr-free, and dimensionally correct. Use the dedicated guide or driver
so the seal travels squarely; never hammer directly on the shell. Follow the
manufacturer is lubrication instruction for the lip—some PTFE designs require
dry installation for the first revolution to seat properly. Confirm the lip
orientation toward the oil and seat depth to the stop if one exists. Only then
torque the flywheel or flexplate to spec, working in a star pattern to avoid
tilting the shell as the flange clamps down.

Where do rear main seals actually live in the market? Anywhere an internal
combustion engine does work. That includes passenger vehicles, SUVs, and
pickups; heavy-duty trucks and buses that run long miles; construction
machinery and earth-movers frequently cycling between idle and full load;
agricultural tractors holding steady torque at low engine speeds; marine
propulsion units that see steady thermal soak; and industrial generator sets
anchoring remote sites. In short, the component is small, the consequence of
failure large, and the environments diverse.

FAQ

Q1: “What material should I stock for mixed fleets?”

A1: Answer: Keep NBR for basic automotive service, FKM as the default for
modern turbocharged gasoline/diesel and light commercial duty, and PTFE in
selected part numbers for fleets running extended intervals or high sump
temperatures.

Q2: “How do I minimize returns?”

A2: Insist on crank surface inspection, include install notes and a simple
visual checklist in the box, and partner with a supplier that validates batch-
to-batch dimensions and spring loads.

Q3: “Why is price variance so wide?”

A3: Compounds, spring metallurgy, PTFE processing, and process controls drive
cost; cheaper seals can work in benign duty, but heavy-duty uptime often favors
premium material and consistent tooling.

Stock strategy benefits from data. Identify your region is top engine families,
split demand between passenger/light commercial and heavy-duty, and profile the
parts that regularly turn. Add a few “insurance” part numbers for common
reman applications. Above all, make urgent fulfillment routine—rear main
failures often convert only if you can ship same day.

A brief word on pressure and breathers, because it keeps coming up: seals are
not pressure regulators. If you encounter repeat failures with lips displaced
or outer shells walking, test the PCV valve or breather routing, look for
frozen lines in cold climates, and verify that boosted crankcase pressure from
aftermarket modifications isn’t asking a seal to do the job of a vent.

Closing on a practical note: quality control shows in the quiet months after
installation. Consistent durometer, stable spring load, clean lip molding, and
accurate shell diameter produce uneventful service. That is precisely what
customers remember.

DEDE supports this reality at ground level. We maintain standard parts ready to
ship—more than ten thousand specifications across O-rings, oil seals, and
related items—with sufficient inventory to handle urgent calls without drama.
When a standard won’t do, our customized, end-to-end service steps in:
material selection for your thermal and chemical profile, lip and case design
for the shaft and bore you actually have, and production testing that proves
the match before it reaches your line. With over thirty years in sealing, we
focus on empowering complete sealing systems—squeezing out maintenance cost
and lifting reliability where it pays dividends. From an in-house manufacturing
plant and full model availability to exports serving 80+ countries, DEDE
operates as a recognized leader in the sealing sector, acknowledged as a
provincial technology innovation center, a specialized and innovative
enterprise, a high-tech enterprise, and a leading company within a specialized
industrial cluster.

That is the backdrop to a simple promise: the right seal, on time, with the
support to keep it quiet for a long time.
