Conduction-Cooled CompactPCI Converter - HDC202C series

HiTRON’s Conduction-Cooled HDC202C-24B-490 is a 3U x 4HP (Half-size) CompactPCI power supply developed for Chassis with Top-cover conduction cooled. HDC202C-24V-490 takes in 16.6VDC to 36 VDC input voltage and provides up to 205W on quad outputs (3.3V, 5V and ±12V) at up to 82% efficiency. HDC202C-24B-490 fits in a 3U CompactPCI slot compliant with PICMG standard, EMC compliance to CISPR EN55032 Class A and EN 55011 (Railway) standard. HDC202C-24B-490 is a high performance, cost effective, reliable, plug in power source for Railway, telecommunications, industrial, military, aerospace and other applications that do not rely on fans for cooling.

1. 205W DC-DC CompactPCI Power
2. Half size 3U x 4HP package
3. 16.6-36VDC input range
4. Conduction-cooled
5. N+1 redundancy
6. Hot-swappable
7. Active current sharing
8. Wide operating temperature
9. Meet EN55032 Class A
10. Fully compliant with PICMG
11. CE marking level 3 compliance
12. EN50155 standard compliance
13. RoHS compliance

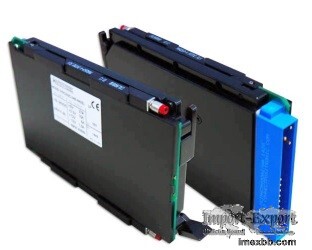

Conduction-Cooled CompactPCI Converter - HDC202C series
Enlarge Click to Enlarge
