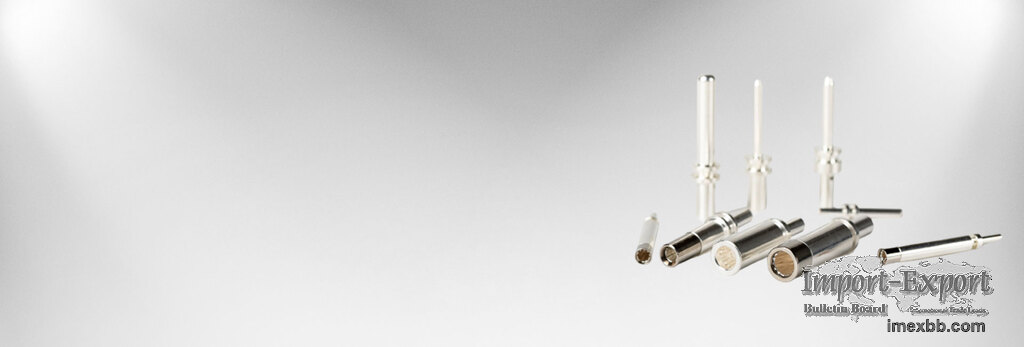

Contact Pins For Sae EV Charging Plug

AP contact pins j1772 pins for SAE meet international standards. It is equipped
with the newest technology and ensures excellent working performance.
Meanwhile, It is able to reach IP67 waterproof level in working condition.

Types of Contact Pins For Sae EV Charging Plug
DC CCS Type1 Connect Pins
DC CCS Type1 Connect Pins
Comply with the regulations and requirements of DC SAE standards. It equips
safe installation and connecting, and an anti-shock design.
AC SAE Contact Pins
AC SAE Contact Pins
Conform to the regulations and requirements of AC SAE standards. It owns high
ampacity and low- temperature rise. This SAE standard pins also have a soft
mating force to improve users' experience.

Contact Pins Features
Smaller size: AP terminals are not only particularly efficient but also with
space-saving and high-current-carrying connectors.
Low resistance: AP provides the best user experience specifically designed for
consumer product applications by keeping the temperature and energy loss in an
efficient level
Long life cycle: The features of HBS terminals are over 20000 cycles with
superior stability.
Soft pulling force: AP high-current connectors are designed with special
structure. This will facilitate user experience by soft pulling force.

FAQs about Contact Pins For Sae EV Charging Plug
How many types pins in SAE charger?
There are 5 pins in SAE AC charger and 2 more in DC charger. They are LN, PE,
CC, CP pins.
What does LN pin standard for?
LN pins is two pin, L standard for live and N for neutral. L pins help to
transfer power in charging period and N pins to create a loop in the system.
Why charger need CC pin?
CC terminal helps people to confirm connect status, if it connects right way.
CC pin will send signal to AC station and show on the screen.
As a special manufacturer and exporter of new energy connector, we can offer ev
battery connector, high current waterproof connector, and others.

Minimum Order: 100 pieces
