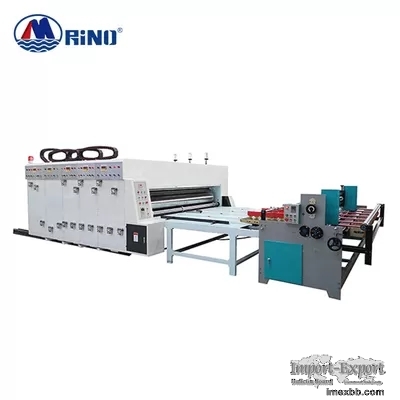

Corrugated Carton Box Flexo Printing Machine With Slotter

Product Description

Automatic Feeder Chain Feeding Flexo Printing Machine For Carton Box With Slotter



Characteristic Carton Box Flexo Printing Machine



This product can complete three-color printing, cutting, creasing, trimming,
slotting, etc. The automatic paper feeding mechanism is adopted, and the
transmission gear adopts 20Cr high-quality alloy steel, the material is carburized
and quenched, and is finished; the wallboard is made of cast iron, with a thickness
of 50mm, without deformation. The hole processing is processed by a high-precision
large-scale machining center, and the hole center distance accuracy can reach
±mm.0.01 The main transmission gear and the transmission shaft adopt a tension-
free key connection method to expand the virtual position, eliminate the center
wear, and maintain the long life of the printing machine. The machine has the
characteristics of accurate color, exquisite printing pattern, convenient use and
maintenance, and high degree of automation.



Parameter



Model Max. paper sizes
Max printing

size

Working speed Max speed Standard Printing Plate Thickness Color-
printed precision(four color) Power of main motor
Roller

diameter

HP-CM1200 2600*1200 mm 2400*1200mm 60(pcs/min) 90(pcs/min) 7mm
±0.75mm 11 kw 408mm
