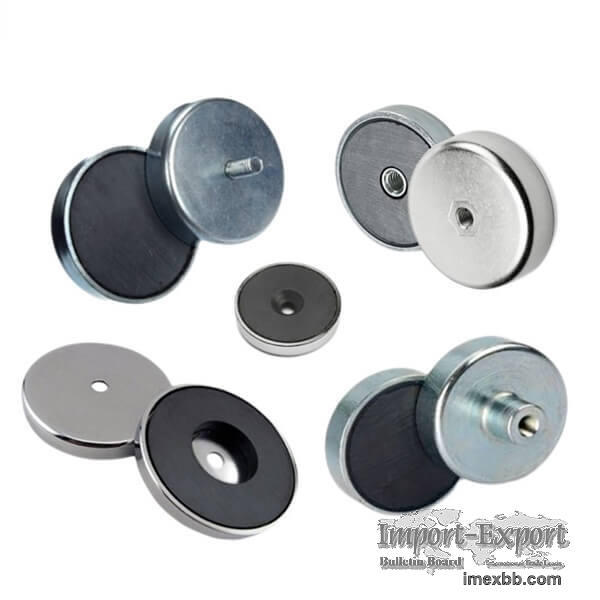

Countersunk Ferrite Pot Magnets

These ferrite pot magnets have countersunk hole of different sizes in the
middle to fit different countersunk screws. The steel cup make the countersunk
ferrite durable and stronger. The dimension of countersunk ferrite pot magnet
varies from 16mm to 63mm. They are known as standard sizes in magnet field.
Diameters of 25mm, 32mm, 50mm are the best selling standard countersunk ferrite
pot magnets. There are technical details in the following table. For stronger
countersunk pot magnet, please look at our neodymium countersunk pot magnets.
Characteristics Of Countersunk Ferrite Pot Magnets
Steel house of countersunk ferrite pot magnet are usually plated with blue zinc
or bright nickel.
Ferrite countersunk pot magnet withstands higher temperature than neodymium.
The magnetic material grade of ferrite countersunk pot magnets is ferrite of
Y30BH.
China countersunk pot magnet of ferrite is much cheaper than the same sized
neodymium magnet.
Items Code D(mm) H(mm) d1(mm) d2(mm) Force(N) Weight(g)
Ferrite-A16 16(+0.1/-0.1) 4.5(+0.2/-0.1) 3.5(+0.2/-0.2) 6.5(+1.5/0)
14 4
Ferrite-A20 20(+0.1/-0.1) 6(+0.2/-0.1) 4.1(+0.4/-0.4) 9.4(+1/0)
27 9
Ferrite-A25 25(+0.1/-0.1) 7(+0.3/-0.2) 5.5(+0.2/-0.2) 11.5(+1/0)
36 17
Ferrite-A32 32(+0.1/-0.1) 7(+0.3/-0.2) 5.5(+0.25/-0.25)
11.5(+1/0) 72 27
Ferrite-A40 40(+0.1/-0.1) 8(+0.4/-0.2) 5.5(+0.2/-0.2) 11.5(+1/0)
90 52
Ferrite-A50 50(+0.1/-0.1) 10(+0.4/-0.2) 6.5(+0.2/-0.2) 12(+1/0)
162 90
Ferrite-A63 63(+0.1/-0.1) 14(+0.4/-0.2) 6.5(+0.2/-0.2) 12(+1/0)
261 195
