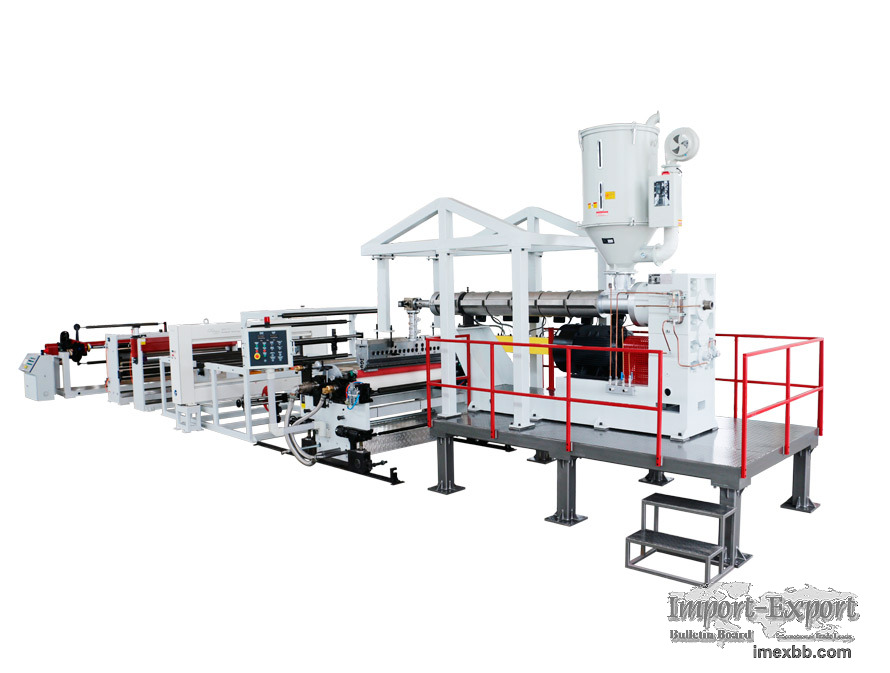

CPP, CPE Cast Film Extrusion Line

We are professional at manufacturing complete cast film extrusion line with
over 25 years' rich experience, highly improving the production efficiency and
extrusion technology. We also have exported many high-quality film production
lines to different countries and provided reliable after-sales service
including installation and operation on site or online. Our CPP, CPE cast film
production line adopts good computer control system, special designed screw
produced by our own company, high precision mold and professional pressure and
temperature control system.

The cast film extrusion process is a plastic film production process, in which
the raw materials are plasticized and melted by the extruder. The film is
extruded through the T-shaped structure forming die and cast in sheet form onto
the roll surface of the cooling roller that rotates smoothly. The film is
cooled and cooled on the cooling roller to form a shape, and then the product
is wound up after being pulled and trimmed.

Introduction of CPP cast film machine

We choose special T-Die for better extrusion efficiency and film quality,
uniform flow mold channel with optimized design and simulation.

As one of cast film extrusion machine manufacturers, we have decades of rich
experience in extrusion screw design based on our own screw manufacturing
company founded in 1978, which means we're also professional at screw design
and could provide reliable screw maintenance.

As one of extrusion machine manufacturers in china, we also have high-level CNC
to ensure the precision processing of the core components.

We have a mature design and technical team to make the cast film line more
efficient and more stable for the long-term production.

Technical parameter of CPP Casting Film Extrusion Line
ModeI Width of die (mm) Products width (mm) Products thickness (mm)
Max line speed (m/min) Max capacity (kg/h)
JCF-3000PP 3000 2700 0.02-0.12 250 800
JCF-3500PP 3500 3200 0.02-0.12 250 1000
JCF-4500PP 4500 4200 0.02-0.12 250 1400
JCF-5500PP 5500 5200 0.02-0.12 250 1600

Introduction of CPE Casting Film Extrusion Line

Automatic and adjustable die head can realize on-line closed loop control, easy
disassembly.

Thin wall and high efficient cooling roller, special spiral flow design, to
ensure the high speed production film shaping effect.

Equipped with negative pressure double chamber vacuum box and static edge
locking device to ensure the stability of film fusion.

High stability corona treatment device, low failure rate, according to the need
to change direction, treatment of both sides of film.

Technical parameter of CPE Casting Film Extrusion Line
Model Width of die (mm) Products width (mm) Products thickness (mm)
Max line speed (m/min) Max capacity (kg/h)
JCF-2500PE 2500 2200 0.02-0.15 250 600
JCF-3000PE 3000 2700 0.02-0.15 200 750
JCF-3500PE 3500 3200 0.02-0.15 200 900

The Application of CPP, CPE Cast Film Extrusion Line
CPP film after printing, bag making, can be used as clothing, knitwear, flower
packaging bags, food packaging, candy packaging, and medicine packaging, etc.

CPE film laminated base material: It can be laminate with BOPA, BOPET, BOPP
etc. heat sealing and bag making, used in food, clothing, and other fields；CPE
single-layer printing film: Printing - heat sealing - bag making, used for roll
paper bag, independent packaging for paper towels etc. CPE aluminum film:
widely used in soft packaging, composite packaging, decoration, laser
holographic anti-counterfeiting, laser embossing laser and so on.

Minimum Order: 10 sets
