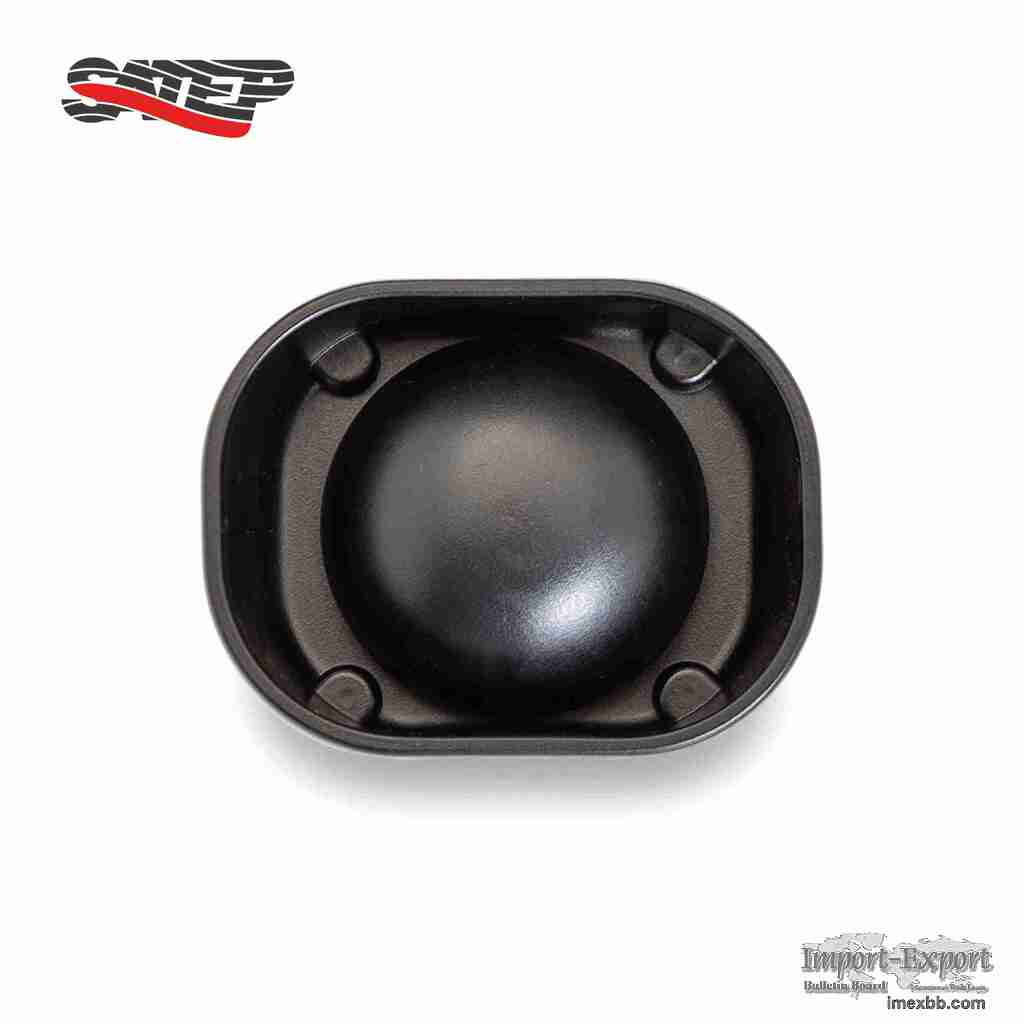

CR041 by SATEP - Speaker for fire & intrusion alarm systems, made in Italy

Model Number: CR041
Type: Speaker
Place of Origin: Italy
Brand Name: SATEP
Material: Acrylonitrile Butadiene Styrene (ABS)
Color: Black
Packaging: Cardboard box
Technology: Magnetic
Operating Temperature: -30°C ~ 105°C
Mounting Type: Surface Mount
Termination: Solder Eyelet/wire leads/solder tabs
Size / Dimension: 80,5x104,5 mm
Height - Seated (Max): 55 mm
Impedance: 4-8-16 ohm
Frequency Range: 1250-3000 Hz
Efficiency - Type: Sound Pressure Level (SPL)
Power - Rated: 108dB (2400Hz)
Power - Max: 15/20W
Net weight: 465g
Magnet material: Ferrite

IMPORTANT:
The product is to be personalized and supplemented with your electronic and
electric components.
The siren can be completed with shell and bracket.
