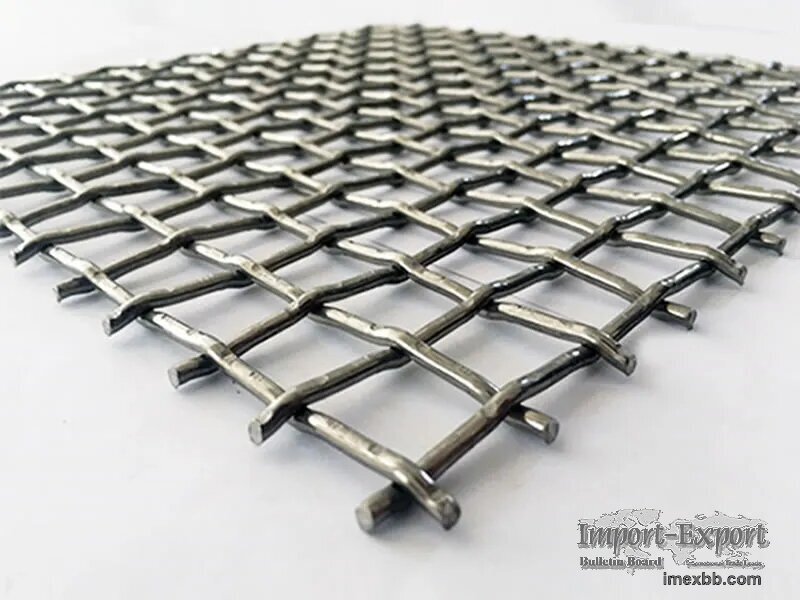

Crimped Wire Mesh

Crimped wire mesh is woven from pre-crimped carbon steel, galvanized steel, or
stainless steel wire. The crimped intersections hold the wires in position and
help maintain the specified opening under screening conditions. It is mainly
supplied for screening stone, gravel, aggregate, coal, and other bulk
materials. Lighter specifications are also used for machine guards, workshop
partitions, and ventilation panels.
East of Weimin Street, Anping County, China
sales@bxwiremesh.com
+86-19134185927 +86-13184973926
WhatsApp: +86-19134185927
www.bxwiremesh.com
Crimped wire mesh is woven from pre-crimped carbon steel, galvanized steel or
stainless steel wire. The crimped intersections hold the wires in position and
help maintain the specified opening. It is mainly supplied for screening stone,
coal, aggregate and other bulk materials. Lighter specifications are also used
for machine guards and industrial partitions. Buyers should specify the clear
aperture and wire diameter in millimetres. This avoids confusion between SWG,
BWG and other wire-gauge systems.

Specifications
Materials: Carbon steel, galvanized steel or stainless steel

Manufacturing Method: Wire crimped before weaving

Opening: Square opening unless otherwise specified

Aperture Measurement: Clear distance between two adjacent wires

Specification Method: Clear aperture × wire diameter

Weave: Pre-crimped woven construction

Supply Form: Rolls or cut panels, depending on wire diameter and finished
stiffness

Dimensions: Made according to the confirmed panel or roll size

Edges: Cut edges or finished edges by order

Required Order Details: Material, clear aperture, wire diameter, width, length,
quantity and intended application

ASTM E2016 treats opening, wire diameter, weave and material as separate
purchasing parameters. These items should appear individually on the order
sheet.

Applications
Screening stone, gravel and aggregate
Coal and dry bulk-material sizing
Machine guards and workshop partitions
Stainless steel screens for selected food-processing equipment
For direct food contact, stainless steel grade, surface condition and
applicable food-contact requirements must be confirmed. Carbon steel and
galvanized mesh should not be presented as food-grade material.
