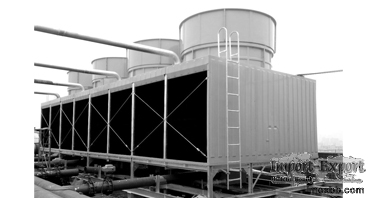

Cross Flow Cooling Tower

Cross flow cooling tower is an induced draft cross flow cooling tower that can
cool water. The water flows vertically from the top of the tower, and the air
flows horizontally through the filler. The air flow is orthogonal to the water
flow in the cooling tower.

The cross flow type cooling tower is often used in residential areas with
strict noise requirements, and it is a cooling circulating tower used more
frequently in the air conditioning industry.

Cross Flow and Counter Flow Cooling Tower
Technical Comparison Between Counter Flow Cooling Tower And Cross flow Cooling
Tower
Project Counter Flow Cooling Tower Cross Flow Cooling Tower
Tower Height Due to the height of the air inlet and the horizontal
arrangement of the water eliminator,the total height of the counter flow tower
is high and the volume is large. Because the height of packing is close
to the tower height and the water
eliminator does not occupy the height, the total height of cross flow tower is
low and the volume is small.
Water Distribution System The counter flow tower adopts the nozzle to
distribute water, which has higher requirements on the pressure head and the
nozzle is easy to be blocked. The cross flow tower adopts the water
distribution system of gravity falling naturally, so the water dispersion hole
is not easy to be blocked, and the water distribution is uniform, which
improves the packing performance to the maximum.
Overhaul The whole body of counter flow tower is a closed structure, so
it should be shut down during equipment maintenance or routine maintenance.
The cross flow tower body is equipped with an access door, and there is room
for maintenance inside the tower, so that the equipment can be overhauled and
maintained without shutdown.
Wind Resistance Due to the reverse flow of water and gas in the counter flow
tower and the obstruction of water distribution to the air flow, the wind
resistance is high and the power consumption of the motor is large. The
cross flow tower is lower than the counter flow tower, and the high air inlet
means the high packing, so the air inlet speed is low and the motor power
consumption is low.
Noise There is a large distance between the packing of counter flow tower and
the lower water tank. After the water falls from the packing, there is a loud
noise. A small part of the lower part of the packing of the cross flow tower
is submerged in the water, so that the water flows directly into the lower
water tank after passing through the packing surface, and the noise is very
low.
Water Loss Because the fan of counter flow tower is located directly above
the packing and the distance is close, the water drift is large. In addition,
the splash loss of the water in the lower tank is very large, and it is easy to
form water mist around the cooling tower, which is easy to cause the
reproduction of Legionella. The cross flow tower fan is located in the
center of the cooling tower, and the packing is located on both sides, so the
water drift is very small, which is an environmental protection product.
Modularization The unit of counter flow tower is
supplied with air from all sides, and the air inlet surface is reduced after
module combination, which affects the air inlet volume.The power consumption of
the motor will increase. The cross flow tower is specially designed for
modularization,
with air inlet from both sides of the unit. After the combination of the
modules, the air inlet has no change, and the power consumption of the motor
remains unchanged.

Characteristics of Cross Flow Type Cooling Tower
Energy-saving, low water pressure, small wind resistance, low-speed motor, no
dripping noise and wind noise, and convenient maintenance of filler and water
distribution system

According to the shape of the building, the foundation can be built randomly,
and multiple cell cooling towers can be started according to the water
temperature required.

Advantages of Cross Flow Cooling Tower
As a major crossflow and counterflow cooling tower inc, our cross flow
induced draft cooling tower casing is made by machine. It makes the casing have
a smooth surface and good quantity.
The motor driver we using belt reducer with low noise characteristic. The
belt is very stronger, clients no need to replace it frequently. If you choose
a cross-flow closed circular cooling tower, we will use a cooling tower direct
drive motor.

The fresh air comes from the cross flow cooling tower working tow side
continuous, the fresh air will take water heat continuously.

Our cooling tower company provides cooling tower filling, drift eliminator,
fan, motor, gearbox, belt reducer, spray nozzle, sprinkler head, float ball,
air inlet louvers, etc... Whatever cooling tower parts you need, you will find
them in our cooling towers LLC AUVC.
If you want to know more information, such as cross flow cooling tower design,
cross flow cooling tower pdf, cross flow cooling tower diagram, etc, you can
click our official website.
