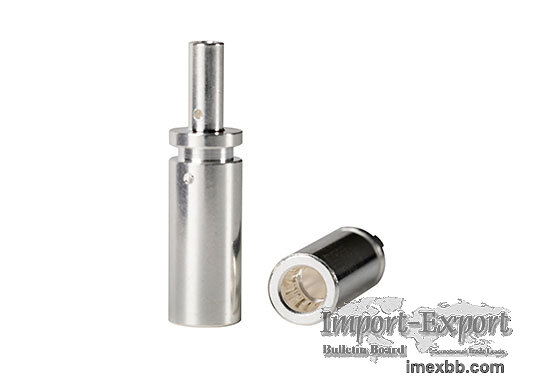

Crown Spring Pins

The high-performance contact system of crown spring pins is able to maintain
the reliability of the electrical contact in the intense vibration environment.
The manufacturing process is simple, and each plate in the elastic ring is
independent. The crown spring design has low contact resistance and mild
pulling force.

Features of Crown Spring Pins
Mechanical life: ≧10000 times
High mechanical durability
Stable mating force and low contact resistance
High reliability and vibration resistance
Application: Clean energy electric vehicle、Energy storage and so on

Specifications of Crown Spring Pins
Product Dimension(Ø) Rated contact Pulling
code (mm) Current ≦(A) Resistance ≦(mΩ) force≤ (N)
AP-CS-30 3 30 0.2 9-Mar
AP-CS-60 6 60 0.15 21-Jul
AP-CS-150 8 150 0.1 30-Oct
AP-CS-200 10 200 0.8 15-45
AP-CS-250 12 250 0.8 15-45

AUPINS is an innovative team specializing in the R&D and production of pins and
connectors.
If you want to know more information about energy storage connector,please
contact us.

Minimum Order: 100 pieces
