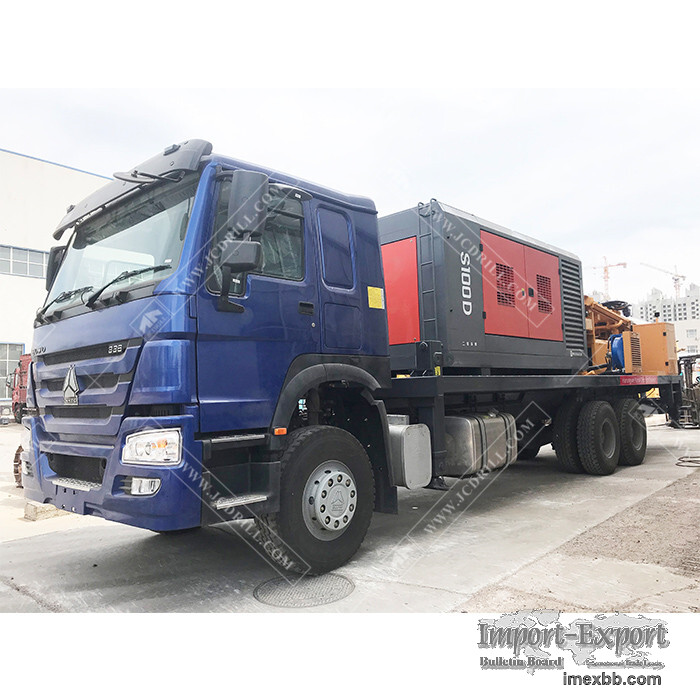

CSD200A Truck Mounted Water Well Drilling Rig with Air Compressor

CSD200A Truck Mounted Water Well Drilling Rig with Air Compressor
Model: CSD200A
Type: Truck Mounted
Max.Drilling Depth: 200m
Drilling Method: Air Drilling & Mud Drilling

CSD200 Series Multi-Functional Truck Mounted Water Well Drilling Rig is a
efficient, multi-function full hydraulic water well drilling rig. It is high
efficiency because of having a larger torque of the turntable and is mainly
used for water well in industry and agriculture, national defense building
foundation, geological exploration, geothermic well and other foundation
working, it is popular at home and abroad.

CSD200 Series truck mounted drilling rig can drilling in all kinds formations
by mud drilling in soft formation and air DTH hammer in rock drilling, DTH
Hammer is applied in rock drilling, slag is discharged by air pressure and the
offstage efficiency is ten times than traditional rotary drilling.

CSD200 Series deep water well drilling rigs, in cutting drilling or rotary
drilling can be operated in unconsolidated layer, and the slag can be
discharged under by mud, the impact drilling operation can also be adopted and
slag can be discharged by pressure air, the hydraulic water well drilling rig
suitable for drilling complicated geological conditions.

Characteristics:
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control.
Rapid pulling and lifting reduce the auxiliary time and enhance the work
efficiency.
3. The truck chassis adopts the 4X2 special crane chassis of brand Kaima&Foton
and the main drive system, the transfer case, gearbox, double-winch unit, mud
pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is
equipped with BW250 mud pump which adopts the slurry as the washing fluid and
can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a diesel engine, 70KW Yuchai engine
drives the large displacement high pressure plunger pump and it is
characterized by powerful dynamic and stable performance.
6. The rotary head,rotation speed is 0-100rpm stepless adjustment and the
rotary torque is 3050-6100Nm.
7. The pulling force can be regulated and controlled, which adapt the machine
to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for
work at night.
9. Main winch are available on the rig so it is high efficiency when the rig
drill on mud rock and on the weathering formation.
10. The main drive of rig is hydraulic and the four landing legs and drilling
tower are hydraulic controlled. Transfer case and mud pump clutch system are
also hydraulic operated.
11. The Hydraulic auxiliary functions are easy and efficient for guide
extension, boom swing, boom lift, guide dumping.
12. Competitive in price, low cost of maintain.

Specification:
1 Geology drilled All kinds
2 Drilling Type DTH & Mud Rotary
3 Drill system and operation Hydraulic
4 Hole Diameter mm Φ140—Φ450
5 Hole Depth m 300
6 Rotation Torque Nm 3050-6100
7 Rotation Speed rpm 60-120
8 Drill pipe diameter mm 89/102/114
9 Drill pipe length mm 3000/4500
10 Max.Pull down capacity T 85KN
11  Max.Pull back capacity T 16
Winch
12 Lifting force of Main winch(Optional) T 5
13 Lifting force of hoist T 1.5
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 7.5
Engine
16 Diesel Engine type YUCHAI
17 Rated Horse power  Kw 70
18  Electrical System Volt 24
Compressor
19 Brand KAISHAN LGZJ18/17
20  Compressor Type Rotary Screw/Movable
21 Pressure Required Mpa 17
22 Air consumption m³/min 18
Truck
23 Manufacturer DONGFENG
24 Model EQ1208G7
25 Engine WD615.47
26 Rated Horse power kw 273
27 Discharge Standard EU-2
28 Drive type 6*4
29 Max.Speed Km/h 93
30 Steering wheel left/right(Optional)
Mud Pump
31 Type Hydraulic
32 Model BW250
33 Stroke mm 110
34 Displacement L/Min 250
35 Discharge pressure (Mpa) Mpa 4
Dimension
36 Net Weight T 19.8
37  Shipping Length mm 11500
38 Shipping Width mm 2480
39 Shipping Height mm 3550
40  Working size（L*W*H） mm 11000*2480*6350
