CSHG300 300w Multifunctional Laser Welding Machine

CSHG300 300w Multifunctional Laser Welding Machine
Laser welding machine, also known as laser welding machine, is a machine used
for processing laser materials. Laser welding uses high-energy laser pulses to
heat the material locally over a small area. The energy generated by the laser
radiation diffuses into the material through heat conduction, melting the
material and forming a specific pool. We offer different types of laser welding
machines.

Introduction of Fiber Laser Welding Machine

It is mainly used to make metal letters and is usually used with channel letter
bending machines and fiber laser cutting machines. The model is a multi-
functional model for bench welding with hand-held welding together. We are
Multifunctional Laser Welding Machine Manufacturer.

Characteristics

1. Applicable materials: stainless steel, steel plate, iron plate, etc

2. Equipped with hand-held fiber welding joint based on automatic laser welding
joint.

3. Optical fiber transmission line 5 meters long optical fiber handheld welding
head can be freely inserted and welding complex words.

4. Easy to operate, no technical requirements for operators.

5. No black spot on the surface and no surface treatment.

benefits

1. Automatic welding head can weld small and complex words, hand-held welding
head can process large advertising letters or signs.

2. Si/GI fiber imported from Germany, stable performance.

3. Compared with traditional welding, fiber laser welding is faster and more
efficient. Save production cost.

4 marble table heavy, stable, smooth, not easy to scratch the surface.

parameter

Main components: chiller, power box, laser beam, big marble table.
1 Max laser power 300w/500W optional
2 Laser wave length 1064nm
3 Fiber type German SI 5 meters cable
4 Laser type Nd: YAG
5 Laser welding depth 0.1-1.2mm
6 Pulse width 0.1-20ms
7 Laser welding frequency 0.5-40Hz
8 Laser spot size adjusting range 0.2-2mm
9 Whole power consumption 6KW
10 Power need 220V ±10%/50Hz/40A
11 Sight positioning CCD digital camera

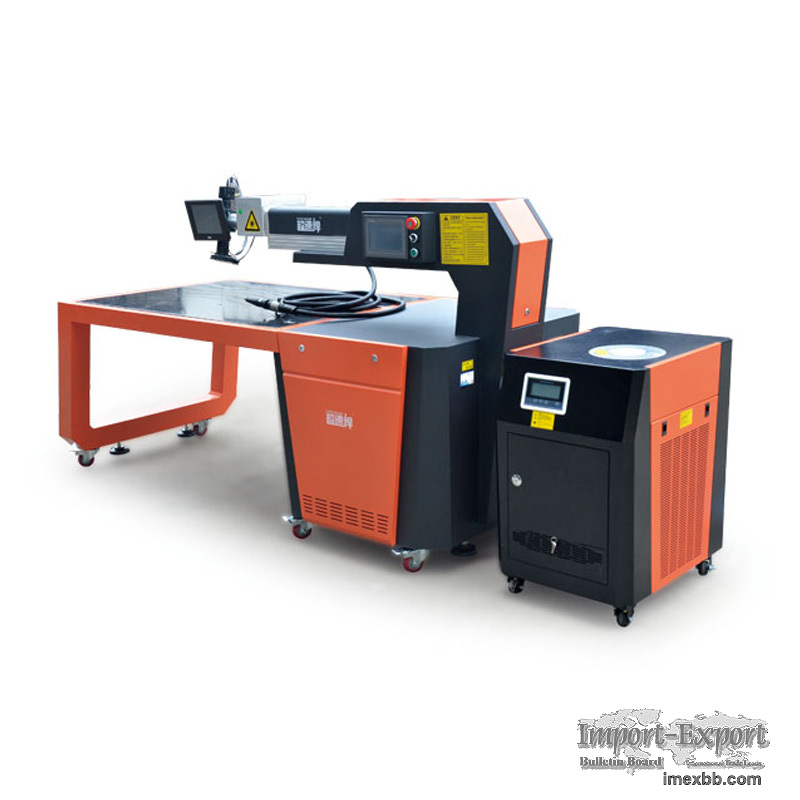

CSHG300 300w Multifunctional Laser Welding Machine
