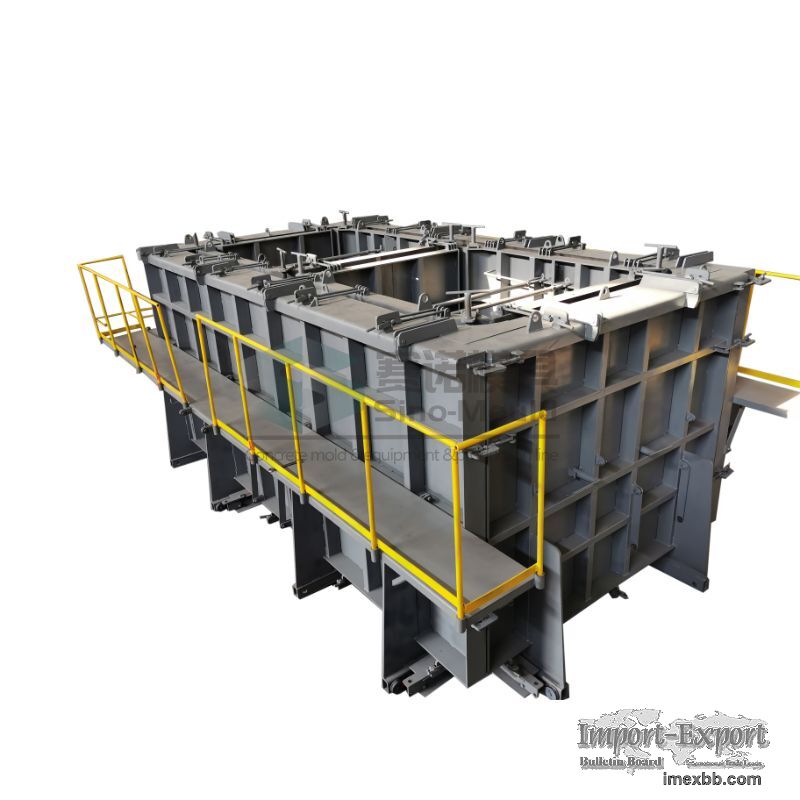

culvert moulds

Structural & Configuration Types
By Mold Configuration: Horizontal-type molds (laid flat) and Vertical-type
molds (standing casting).

By Chamber Quantity: Single-chamber, Double-chamber, Multi-chamber (3+
chambers).

Special Components: Ventilation openings, access shafts, integrated wall panel
or top slab elements, custom chamber dividers.



Features & Advantages
Fully automatic hydraulic mold opening/closing system for faster turnover and
reduced labor.

Integrated vibration mechanism to ensure proper compaction and smooth finish.

Premium sealing performance with silicone gaskets and tight joint alignment to
prevent leakage of cement slurry or ground water ingress.

Stationary casting process with stable base & guided sliding outer mould for
precision alignment.

Automated box culvert mould production line capable of continuous operation,
optimizing throughput and reducing amortization costs.

Precise mould manufacture with all components produced with ±2 mm tolerance.

Size range of moulds from 1 m to 4 m, custom sizes beyond that available on
request.

Durable steel material that under normal use achieves multiple casting cycles,
providing excellent lifecycle cost savings.

Typical lead time from order confirmation to delivery is ~1 month.
