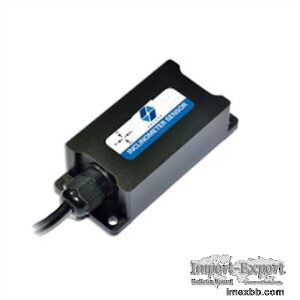

Current Type Dual-Axis Tilt Sensor

Introduction
ER-TS-4258CU Current Type Biaxial Tilt Sensor is a small volume MEMS biaxial
current output tilt sensor, output current 4~20mA, 0~20mA, 0~24mA optional. Due
to the built-in micro-electromechanical production process inclination device,
the product is small in size, low in power consumption, industrial-grade
working temperature is -40~+85℃, and long-distance transmission can reach more
than 2500 meters. The strong ability to resist external electromagnetic
interference makes it suitable for long-term work in harsh industrial
environments.
The product adopts the principle of non-contact measurement, can output the
current attitude inclination in real time, the accuracy can reach 0.1°. The
product is simple to use and does not need to find the relative change of two
surface installation, which is the ideal choice of industrial equipment and
platform measurement.

Features
Biaxial tilt monitoring
Full range accuracy 0.1°, resolution 0.01°
Output 4~20mA, 0~20mA optional
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Range:0~±90°(selectable)
High vibration resistance>3500 g
IP67 protection level
RS232 can be output simultaneously, RS485 customizable
Volume (90*40*27mm) (customizable)

Applications
Railway gauge
Satellite solar antenna positioning
Tractor, deep tillage machinery
Mining machinery, oil logging equipment
Medical equipment
Hydraulic lifting platform
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams
