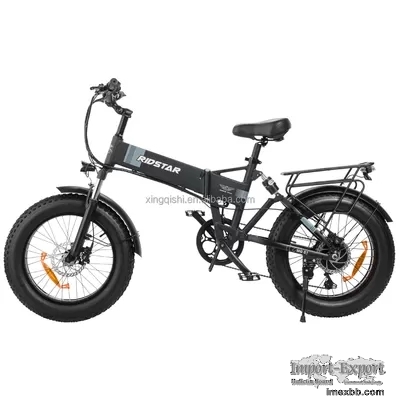

Customizable Fat Tire Hunting Electric Bikes 750Watt For Office Lady

Product Description

20 inch fat tire mountain electric bike

Customizable Fat Tire Hunting Electric Bikes 750Watt For Office Lady 0
Model:
XQS-CC2040SK
Frame size
20"
Color:
Black Blue White Army Green or as requests
Net Weight:
27kg
Frame:
6061 aluminum alloy full suspension folding frame
Handelbar Sets:
6061 aluminum alloy
Fork:
Aluminum Alloy Hydraulic Suspension Fork
Shifting Lever:
Shimano TY21
Front Derailleur
Shimano TZ500-7
Rear Derailleur:
Shimano RD-TZ500, TZ, GS 7-SPEED
Cranksets:
Prowheel Aluminum crank square hole 52T
Freewheel:
Shimano TZ500 7speed 14-34t
Chain:
KMC 7s
Brake:
Hydraulic disc brake with power cut off feature
Wheel
spoked 20"x4.00
Tire:
KENDA or Chaoyang 20*4.0
Electric configuration:
Riding mode:
PAS mode (5 Shifts) Range 150-170 KM

Pure Human Riding

Pure electric mode (5 Shifts) Range 80-90KM
Maximum speed:
≤25km/h, ( can be set faster as customer required )
Front light
LED Powered by battery
load:
180kg
Battery:
48V 14 Ah 18650 Lithium battery LG or Samsung Or Panasonic

( can be changed as customer required )
Charger:
Over voltage,Over current Protection,etc.
Motor:
rear drive 48v 500-1000w brushless Bafang, waterproof rating IP54

( can be changed to more powerful motor as customer required )
LCD Display
OMT-S700 LCD Data display function, setting function: Waterproof rating: IP54
Power assist Sensor :
KDS Left-load 12-point Holzer-intensive speed sensor Waterproof: IP54
Controller
5 Shifts intelligent control system
Wire connector:
All cables are Waterproof Integrated wires
