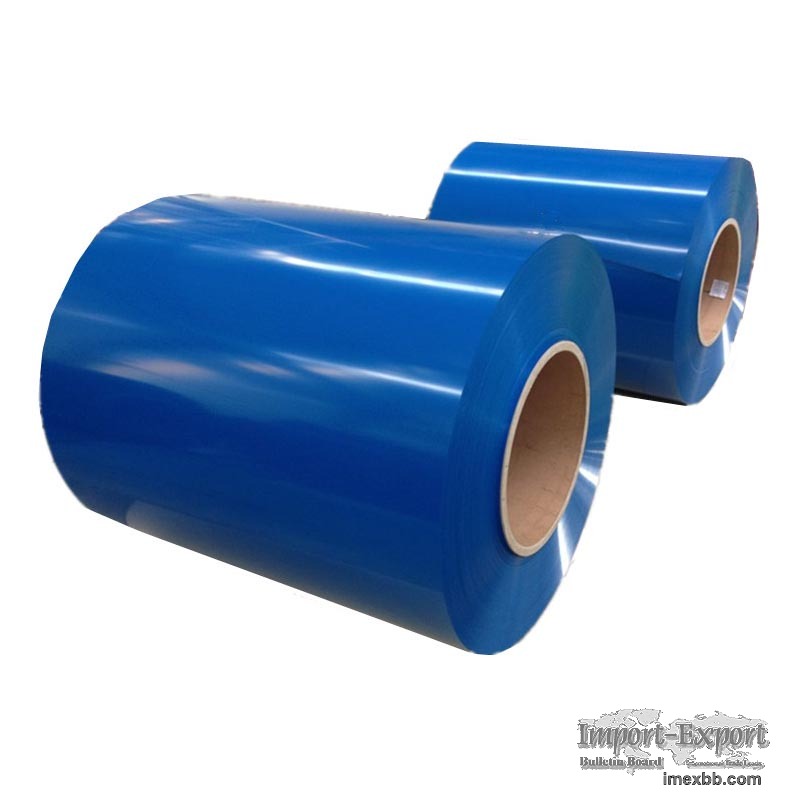

Customized 1100 / 3003 / 3105 / 5052 / 8011 PE & PVDF Color Coated Aluminum

Product Description

Color Coated Aluminum Coil (Prepainted Aluminum Coil) is produced from high-
quality aluminum alloy coils through degreasing, chemical treatment, coating, and
high-temperature curing processes. The coating is uniform with strong adhesion,
significantly enhancing decorative appearance while improving corrosion resistance,
weather resistance, and service life.

We supply customized PE / PVDF color coated aluminum coils in alloys 1060, 1100,
1200, 3003, 3105, 5052, 6061, and 8011, suitable for roofing systems, ceilings, roller
shutter manufacturing, automotive components, and other applications.

PE vs. PVDF Coating
(1) PE Coated Aluminum Coil

Cost-effective with a wide range of color options
Suitable for general outdoor or indoor environments
Commonly used for roller shutters and decorative roofing

(2) PVDF Coated Aluminum Coil

Excellent weather resistance and UV resistance
No fading or chalking during long-term outdoor exposure
Ideal for architectural roofing and high-end construction projects

Technical Specifications

Alloy: 1100 / 3003 / 3105 / 5052 / 8011
Temper: O / H14 / H24 / H16 / H18
Thickness: 0.20 - 2.00 mm
Width: 100 - 1600 mm (customizable)
Coil Weight: 1-5 tons (or as required)
Coating Type: PE (Polyester) / PVDF (Fluorocarbon)

Coating Thickness:
PE: ≥18 μm
PVDF: ≥25 μm

Coating Structure: Single coat single bake / Double coat double bake
Surface Finish: High gloss / Matte / Embossed / Wood grain / Stone grain
Color: RAL color system or customized colors
Standards: ASTM / EN / JIS / GB
Applications: Roofing, roller shutters, automotive, industrial materials
MOQ: 1-3 tons

Key Advantages

1.Excellent Corrosion Resistance: Combines the natural corrosion resistance of
aluminum alloys with high-performance PVDF coatings, effectively resisting acid rain,
industrial pollution, and high-salinity marine environments.

2.UV Resistance: Special UV absorbers ensure no chalking or fading under strong
sunlight, with color retention exceeding industry standards.

3.Lightweight: Aluminum density is only one-third of steel, significantly reducing
structural weight for roofing or automotive applications without compromising
strength, lowering installation and energy costs.

4.High Impact Resistance: Hard coating surface resists scratches during installation and
impact from hail or other natural forces.

5.A-Class Fire Resistance: Aluminum is non-combustible; combined with flame-
retardant coatings, it meets high-level building fire safety requirements.

6.100% Recyclable: Aluminum has high recycling value and complies with global
sustainability and green building standards such as LEED.

Applications

Construction: Roofing systems, ceilings, curtain wall systems, exterior wall decorative
panels
Roller Shutters & Door/Window Systems: Industrial roller shutters, garage doors,
aluminum alloy doors and windows
Automotive: Interior and exterior trim parts, body decorative panels
Home Appliances: Refrigerator panels, washing machine side panels, air conditioner
housings
Industrial Equipment: Equipment enclosures, control cabinets, distribution boxes
Decoration: Advertising boards, signage systems, display racks, decorative panels

Company Profile

We are a professional manufacturer and exporter specializing in deep-processed
aluminum sheets, coils, and foils. Equipped with advanced color coating production
lines and a complete quality management system, we produce aluminum coils in 1xxx,
3xxx, 5xxx, 6xxx, and 8xxx series alloys, supporting OEM / ODM customization.

With strict quality control, our products are exported to more than 40 countries and
regions worldwide. We offer short lead times, competitive pricing, and sample
services.

Packaging & Delivery
(1) Packaging

Waterproof kraft paper + plastic film

Steel strip strapping

Wooden pallets or wooden cases (export standard)

Customized packaging available upon request

(2) Shipping

Sea freight (FCL / LCL)

Trade terms supported: FOB / CIF / CFR

Pre-shipment photos and inspection reports provided

FAQ

Q1: Do you support small quantity or trial orders?
A: Yes. MOQ is negotiable depending on alloy and specifications.

Q2: Can colors and surface finishes be customized?
A: Yes. RAL colors are supported, as well as wood grain, stone grain, and embossed
finishes.

Q3: How should I choose between PE and PVDF?
A: PE is recommended for general environments; PVDF is recommended for long-term
outdoor use or high-requirement projects.

Q4: Do you provide samples?
A: Samples are available for testing and confirmation (freight cost negotiable).

Q5: What is the typical delivery time?
A: 15-25 days for regular specifications; customized products are subject to order
confirmation.

Minimum Order: 1 tons
