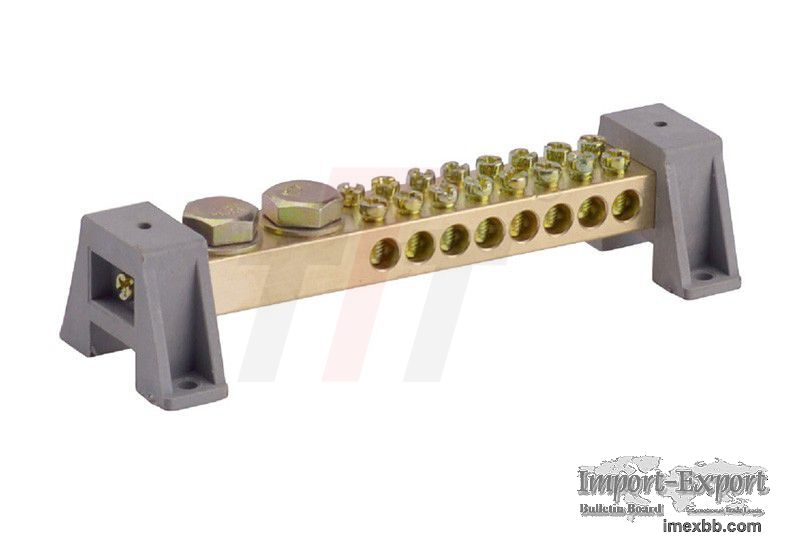

GK035 Terminal series use high quality brass raw material,has the
characteristics of high-current- carrying capacity, convenient-wiring
and durable quality.With acid-pickling treatment, products are  not easily
oxidized.Due to Precisely manufacturing, it  avoid the difficultyof
reinstallation after many times .

Pole No. Installation Dimension(mm) Outline Dimension(mm)
Sectioncross of Brass(mm2)
1+4 65.7*33 79.7*42 12*18
1+8 97.7*33 11.7*42 12*18
1+12 129.7*33 143.7*42 12*18
1+16 161.7*33 175.7*42 12*18
1+24 225.7*33 239.7*42 12*18
1+32 289.7*33 303.7*42 12*18
1+48 417.7*33 431.7*42 12*18

Requirements to a terminal body
1 The terminal body is  manufactured from copper-zinc alloy
2 The terminal body is to be manufactured in parallelepipedal shape with
mutually perpendicular side planes. Deviation of perpendicularity is no less
than 0,1mm
3 The other sharp edges are to be blunted
4 The surface of holes for wire mounting is to be smooth without burrs, edge
fins and etc.
5  The form of thread into threaded openings is to be full without edge fins.
Every opening is to have no less than three full turns of a thread

Requirements to a terminal
1 The terminal is to be equipped with screws in the quantity equal to the
quantity of contact groups for the wire fixing
2  The screws are not to create troubles to next screws at the operation
3  Dimensions and completed set of terminals are to correspond to design
documents.
4  Operation temperature range could be from minus 40 to plus 50 °С.

Outgoing inspection of DIN Rail Terminal Blocks
Visual Check:
-        Bring out the absence of outer damages, deep scratches, cracks,
chips, corrosion on the terminal and screws.
-        All screws are to be entirely tightened.
Temperature Rise Test :
-         5% of the batch of each standard size, but not less than 10 pcs.
Flame Retardant Test:
-         5% of the batch of each standard size, but not less than 10 pcs.
