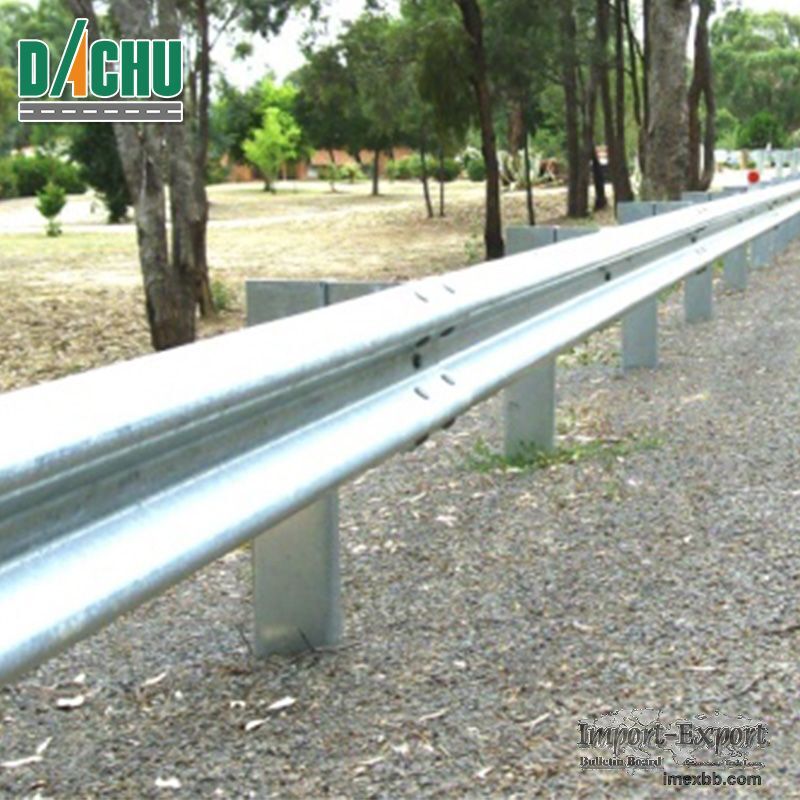

Customized W Beam Highway Guardrail

Customized W Beam Highway Guardrail
Product Description
Customized W Beam Highway Guardrail is both rigid and flexible, has strong
ability to absorb collision energy, can be coordinated with the road alignment
and various facilities. It also can be installed and used on small radius
bends road. The connection is simple and convenient, and the damaged part can
be easily replaced.
Parameters
Guardrail Standard AS/NZS 3845
Totally Length 4318MM / 4320MM
Effective Length 4000MM
Base Steel thickness 2.7MM / 3.0MM;Can be customized
Material S355JR Steel
Yield Point Minimum 345Mpa (50000psi);
Tensile Strength Minimum 483Mpa (70000psi);
Surface Treatment Hot Dip Galvanized
Zinc Coating Average 55μm or 390g/m2;Can be customized
Coat Standard AS 4680
Free Sample Available
Curved W Beam Can be customized
