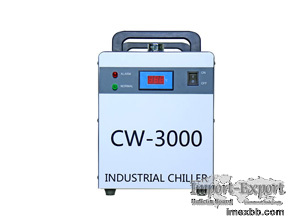

CW 3000 Industrial Chiller For 1.5KW CNC Spindle
CW 3000 industrial chiller can be used to cool the spindle of a 1.5kw
woodworking, stone or metal cnc engraving machine. The CW3000 is equipped with
a high-speed and large-volume silent fan to help the device dissipate heat. The
double-row aluminum radiator doubles the heat dissipation performance. The 9L
built-in water tank ensures enough water to cool the device.
Advantage Of CW 3000 Industrial Water Chiller For 1.5KW CNC Spindle
Simple structure, easy to operate, light weight, small size, easy to move.
High quality cooling water circulating pump is adopted, which has the
advantages of large flow, high head and low noise.
Customized PVC water tank with large capacity, light weight and long service
The temperature control accuracy can reach ± 0.3 ℃.
Specification Of CW 3000 Industrial Chiller For 1.5KW CNC Spindle
Model CW-3000AH CW-3000AK Cw-3000AF
Voltage AC 1P 220V AC 1P 220V AC 1P 220V
Radiating capacity 50W/℃
Tank capacity 9L
Inlet and outlet External Φ10mm brass connector Φ8mm speedy connector
Max. lift 10M
Max. flow 10L/min
Protection Flow alarm
Dimension 47 X 26 X 38cm (L X W X H)
Packing dimension 59 X 39 X 48cm (L X W X H)
Application Of CW 3000 Chiller For 1.5KW CNC Spindle
Applied to cool two 1.5KW CNC spindles or welding equipment.
More Details Of CW 3000 Industrial Chiller For 1.5KW CNC Spindle
Simple And Easy To Operate, With Alarm Protection Function
Special Louvered Vents Can Prevent Dust While Dissipating Heat
Use Well-known Brand Fans, Large Air Volume, Extremely Low Noise
Exquisite Design Of The Whole Machine
Xintchillers is a reliable water chiller manufacturers, we provide water cooled
welder, welding fume extractor and etc. Want to know more Please contact us
Minimum Order: 500 sets
