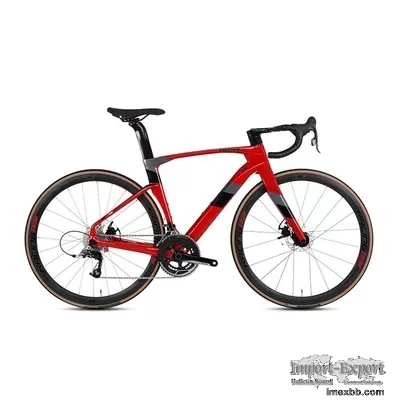

CYCLONE Pro Carbon Fiber Road Bike

PRODUCT DESCRIPTION
CYCLONEpro Carbon Fiber Road Bike Disc Brake Sram Rival 22 Speed Alloy Wheel



The Features of the Frame:

1. The frame of CYCLONEpro is made of high modulus Carbon Fiber (Carbon
T900)

The strong carbon fiber shell durable frame, strong and light weight

2. Full Inner-Cables makes the complete bike to be more concise and
professional.

3. Aero-design reduces air resistance and makes your riding faster

4. Gloss or Matte with UV embossing decals.



The Mian Components of CYCLONEpro:

Frame CYCLONEpro(disc&thru-axle), high modulus Carbon
Fiber,EPS,Racing,full Inner-Cables,Gloss or Matte,UV embossing decals
Handelbar Sets TW, high modulus Carbon Fiber, Integrated
Handlebar&Stem(420*90mm),UV embossing water decals, inner-Cables
Seat Post High modulus Carbon Fiber, UV decals
Clamps Hidden Screw Fit to Frame
Fork CYCLONEpro, high modulus Carbon Fiber,700C,UV embossing decals,
Disc&thru-axle 12×100mm
Head Sets TW, Alu alloy CNC with sealed-Bearings 52*52mm
Washer Carbon 3K, 3×28.6×10mm
Derailleur Handle SRAM RIVAL-22S (hydr disc Handle)
Front Derailleur SRAM RIVAL
Rear Derailleur SRAM RIVAL
Cranksets SRAM RIVAL, Hollow,34-50T
Cassettes SRAM PG1130-11S, 11-32T
Chain SRAM PC1110-11S
BB BB86×46×24mm, pressed, Alu alloy CNC&Hollow, with sealed bearings
Brake SRAM RIVAL flat-mount Hydr+PRO float disc
Hubs RS, Alu alloy,4-sealed Bearings,Slotted,F20*R24 holes,Disc&thru-axle
F12×100_R12×142mm
Rim RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C, UV decals
Spoke SHUNJIU, Flat 14G,bend head
Tyre INNOVA-PRO, Smoothie, 120PSI, 700*25C, Skin-color edge


A Variety of Colors: BlackRed / Red / WhiteRed / Black / TiGray / CementGray
/ Silver / Blue / Yellow / Orange/ OEM
CYCLONE Pro Carbon Fiber Road Bike 0



Size:700C*45cm / 48cm / 51cm / 54cm

CYCLONE Pro Carbon Fiber Road Bike 1

size A B C D E F G H I
J K
BB Center to Top of Seat Tube Effective Top Tube Horizontal BB
offset Chainstay Length Seat angle Head Angle Front Center
Head Tube Length Fork Offset Reach Stack
mm mm mm mm ° ° mm mm mm
mm mm
XS - 45cm 450 505 -74 408 74.3 71.2 570 100
55 363 506
S - 48cm 480 520 -74 408 74.3 71.2 588 114
55 374 518
M - 51cm 510 538 -74 408 74.3 71.2 607 130
55 388 534
L - 54cm 540 550 -74 408 74.3 71.2 620 150
55 394 553


FRAME SIZE WITH RIDER HEIGHT
Frame size XS - 45cm S - 48cm M - 51cm L-54CM
Rider height 155-170cm 165-175cm 175-185CM 185-195CM




Details of CYCONEpro:



CYCLONE Pro Carbon Fiber Road Bike 2

Derailleur / Brake System:

Shift lever: SRAM RIVAL-22S

Front Derailleur: SRAM RIVAL

Rear Derailleur: SRAM RIVAL

Brakes: ZOOM, flat-mount&cable pull Hydr(metal radiator)+PRO float disc

CYCLONE Pro Carbon Fiber Road Bike 3CYCLONE Pro Carbon Fiber Road Bike
4CYCLONE Pro Carbon Fiber Road Bike 5
