Cylinder Lenses

Our company produces different types of cylindrical optical lenses, such as
concave/convex cylindrical lens china, astigmatism cylindrical lens, and
especially widely used to anamorphic compression of LD (laser diode) output
beam. You are welcome to consult the cylindrical lens price.
Specification of Cylindrical Lens

Material BK7 or Fused Silica
Design Wavelength 632.8 nm
Design Index
BK7 n=1.5147±0.0005
Fused Silica n=1.45702±0.00005
Surface Figure x: λ/2; y: 2λ
Diameter Tolerance +0.00, -0.15 mm
Thickness Tolerance ±0.2 mm
Paraxial Focal Length ±2%
Centration <3 arc minutes
Clear Aperture >85%
Surface Quality 60-40 Scratch And Dig
Protective Bevel 0.25 mm x 45°

Cylindrical Lens Capacity

Material Optical Glass, Fused Silica, CaF2, MgF2, Sapphire, ZnSe, ZnS
Diameter 0.5 to 350 mm
Diameter Tolerance +0/-0.02 mm
Thickness Tolerance ±0.01 mm
Surface Quality 10-5
Surface Figure λ/10
Centration 1 Minute or 30 Second
Coating Uncoated, AR and HR


BK7 Plano-Convex Cylindrical Lens Standard Products

Part No. X×Y (mm) f (mm) R1 (mm) t c(mm)
t e(mm) f b(mm)
TXC101 10.0x10.0 12.7 6.54 4.3 2.0 9.8
TXC102 20.0x10.0 12.7 6.54 4.3 2.0 9.8
TXC103 10.0x10.0 20.0 10.29 3.3 2.0 17.8
TXC104 20.0x10.0 20.0 10.29 3.3 2.0 17.8
TXC105 10.0x10.0 25.0 12.87 3.0 2.0 23.0
TXC106 20.0x10.0 25.0 12.87 3.0 2.0 23.0


BK7 Plano Cylindrical Lens Standard Products

Part No. X×Y (mm) f (mm) R1 (mm) t c(mm)
t e(mm) f b(mm)
TEC201 10.0x10.0 -12.7 6.54 4.3 2.0 -14
TEC202 20.0x10.0 -12.7 6.54 4.3 2.0 -14
TEC203 10.0x10.0 -25.0 12.87 3.0 2.0 -26.3
TEC204 20.0x10.0 -25.0 12.87 3.0 2.0 -26.3

TC Optics is a professional cylindrical lens factory / cylindrical lens
supplier, we provide optical component, cylindrical glass lens, cylindrical
lens diagram, cylindrical optics, precision optical design and etc. Contact us
to know more.

Minimum Order: 1 dozens

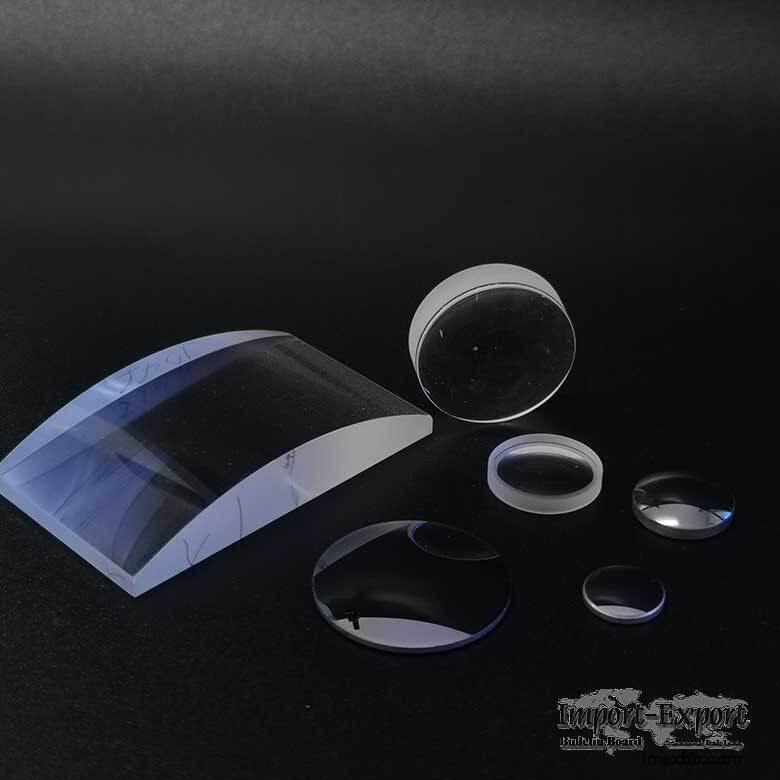

Cylinder Lenses
Enlarge Click to Enlarge
