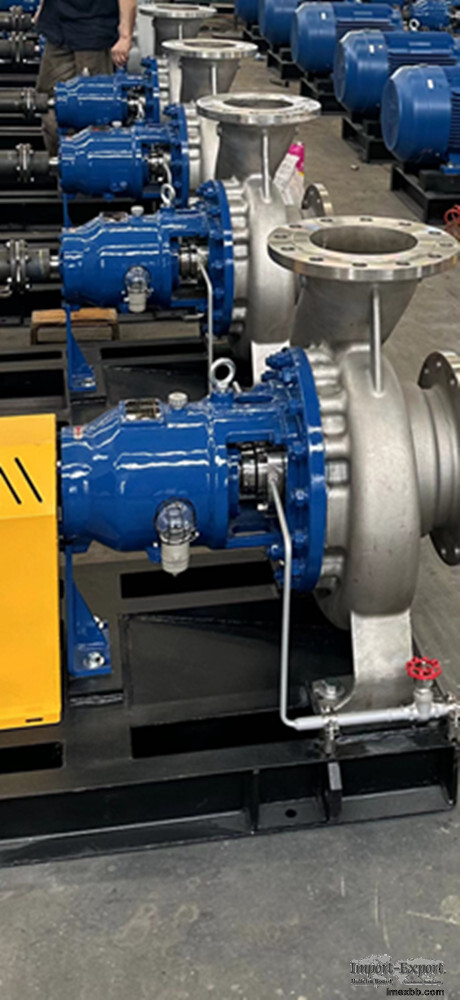

CZ Stainless steel centrifugal chemical process pump used in plateau area

CZ Stainless steel centrifugal chemical industrial process pump horizontal
When using CZ centrifugal pumps (typically referring to standard industrial process
pumps conforming to DIN/ISO standards) in plateau regions, special attention must
be paid to the reduced motor heat dissipation efficiency, changes in net positive
suction head (NPSH), and sealing performance challenges caused by low atmospheric
pressure and low oxygen environments. While the CZ pump itself features a wide
temperature range (-40°C to +260°C) and corrosion resistance, targeted
adjustments are required during selection and operation in plateau areas.
Key Impacts of Plateau Environment on CZ Pumps and Mitigation Strategies
Motor Power and Heat Dissipation Correction
The thin air at high altitudes reduces the cooling capacity of electric motors,
potentially leading to excessive temperature rise. For CZ pumps with direct drive
or coupling transmission, it is necessary to reduce capacity or use high-altitude-
specific motors (such as Class F insulation with enlarged heat sinks). Forced
ventilation measures should be added when necessary. For standard plainland motors,
output power typically requires correction based on altitude when operating above
2,000 meters. ‌‌
Cavitation Margin (NPSH) Verification
The atmospheric pressure on the plateau decreases, while the saturated vapor
pressure of the liquid relatively increases, leading to a significant reduction in
the available net positive suction head (NPSHa). Although the CZ pump has lower
cavitation performance indicators, the required net positive suction head (NPSHr)
must be recalculated under plateau suction conditions. The pump's installation
height must be kept below the critical value to prevent cavitation damage to the
impeller. It is recommended to appropriately lower the installation height or
increase the suction pipe diameter to reduce resistance losses. ‌‌
Mechanical Seals and Bearing Lubrication
Low atmospheric pressure may affect the heat dissipation and lubrication
effectiveness of mechanical seals, particularly in bearing housings reliant on oil
lubrication (such as dilute oil lubrication systems). During operation at high
altitudes, it is necessary to inspect whether the seal cooling system functions
properly and verify that the lubricant viscosity is suitable for low-temperature
and low-pressure conditions to prevent leaks or bearing overheating. The externally
mounted mechanical seal and constant-level oil cup design employed in CZ pumps
require adjustments to the sealing pressure balance for high-altitude operating
conditions. ‌‌
Selection and Operation Recommendations
Material and Structural Selection: Due to significant temperature fluctuations in
plateau regions, castings with matching thermal expansion coefficients should be
selected for media with extreme temperature variations. The rear-door structure of
the CZ pump facilitates maintenance of the impeller and seals without disassembling
the pipeline, adapting to field service conditions.
Performance parameter matching: Adjust the pump's flow-head curve based on the
actual altitude. Although the change in liquid density in high-altitude
environments is minimal, variations in gas solubility may affect the stability of
conveying gas-containing media. It is necessary to confirm whether the pump type is
suitable for gas-containing conditions.
Foundation and Support: When installing CZ-type pumps (especially direct-drive
models without a base), ensure the foundation is stable. The weight of the suction
pipeline must be supported by independent brackets to prevent pump body deformation
and intensified vibration
