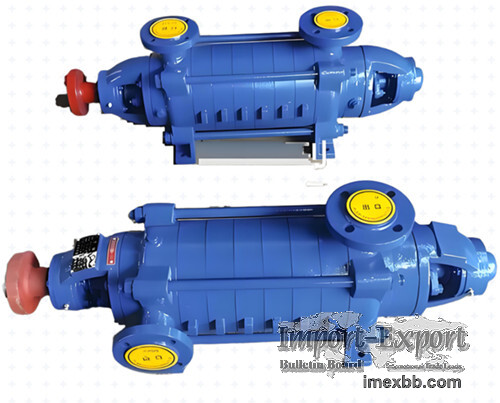

D,DG Boiler water feeding pump

The pump is a segmental multistage centrifugal pump suitable for conveying water
and liquids with physical and chemical properties similar to water at temperatures
below 110degree celsius.
It is suitable for feedwater in marine boilers, land-based boilers, oil furnaces,
as well as for boosting water supply in factories and cities. It features
advantages such as energy conservation, compact structure, small size, lightweight,
and reliable operation.
The D, DG, and DGA series multi-stage centrifugal pumps are horizontal, sectional
centrifugal pumps. The suction inlet of the D-type is horizontal, while the DG and
DGA types are vertically upward. The discharge outlet is vertically upward for all
types. For shaft sealing, the D and DG types use soft packing seals, whereas the
DGA type adopts mechanical seals.
working conditions
Flow rate: 3.75 to 55 m³/h
Head: 73.5 to 666m
Medium temperature: 0 to 110 ℃
Power supply: 50Hz, 380V; 60Hz, 440V
Model Significance
DGA12-25 × 8
DG: Multi-stage Centrifugal Pump
A: Mechanical Seal Type
12: Rated flow 12.5m³/h
25: Single-direction head 25m
Grade 8: Series 8
Pump casing /impeller: cast iron, stainless steel, bronze

Minimum Order: 1 sets
