DC Micro Blowers

WHEE is a leading cooling fan factoryin China, focusing on DC brushless motor
cooling fans/cooler and modular design, on products including industrial
cooling fan, universal cooling fan, centrifugal blowers, frameless fans, micro
fans, CPU cooler,dc brushless cooling fan, brushless cooling fan, frameless
fans, universal cooling fan and thermal module. Cooperative manufacturer of
systematic OEM/ODM products.

WHEE small blower fan 12v / mini blower fan 12v / blower mini dc has
compact structure, precise operation, small volume, large air output, good
balance and small noise. Small dc blower / small 12v dc fans / small 12
volt cooling fans / small cooling fans 12v / small computer fan 12v helps
designers to meet space requirements of portable devices. Find WHEE, a Micro
blower manufacturer with sepcial design from China.

DC Micro Blowers Functions

FG: FG Signal

RD: RD Signal

PWM: PWM Signal

VC: Voltage Control

TC: Temperature Control

DC Micro Blowers Specifications

BEARING TYPE F.D. Bearing /One ball /Sleeve bearing/ Two ball
FRAME P B T. UL94V-0
IMPELLER P B T. UL94V-0
P C B UL94V-0
MATERIAL LIST RoHS Compliant
OPERATING TEMPERATURE -10 ℃ ~  + 70 ℃
STORAGE TEMPERATURE -40 ℃ ~  + 70 ℃
DIELETRIC STRENGTH Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds
between housing and both lead wires.
INSULATION RESISTANCE At least 10 MΩ at 500VDC between internal stator and
both lead wires.
LIFE EXPECTANCY 30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at
40℃ ambient.

DC Micro Blowers List

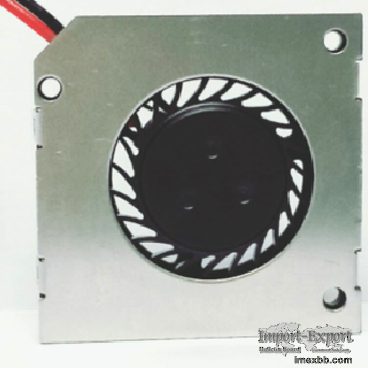

30*30*04 DC Micro Blowers

Minimum Order: 1000 pieces

Click to Enlarge
