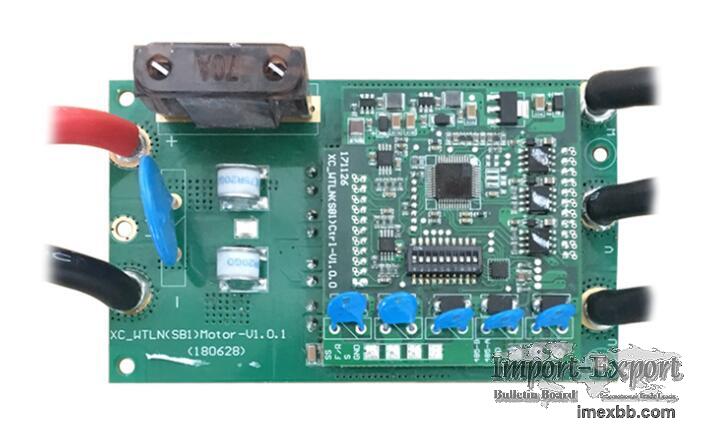

DC96V BLDC Motor Controller for Solar Pumping System

XC700 DC 96V Motor Controller for Solar Pumping System


XC700 motor controller is mature product designed for solar pumping system.
This product was released several years ago, the performance and reliability
had been verified and approved by clients and market, it’s one of the best
sellers in XC motor control product family.


Demand on solar pump controller could be diverse, we provide bespoke service
for customers. If you have any specific requirement, we help you achieve it.


This motor controller for solar pump comes with characteristics:
Specification:
Model: XC700-SP-96V-1300w
Working Voltage: DC24-150V
Rated Voltage: 96V
Rated Current: 13.5A
Working Temp: -30-85℃
Humidity: 95% Max
Dimension: 115*96*39mm (PCBA), 144*170*61mm (set)
Protection: Antiflood protection, water lack protection, undervoltage
protection, overcurrent short circuit protection, over-temperature protection,
motor stall protection and reverse, polarity protection
Start/stop and speed control
Suitable for applications powered by solar panels, MPPT algorithm inside


XC Motor Control has been specializing in motor control since2011, we have
considerable expertise in enhancing motor control. The potent combination of
hardware and advanced software can keep your device working at its best.


Have a try, you are worth a better solution.
