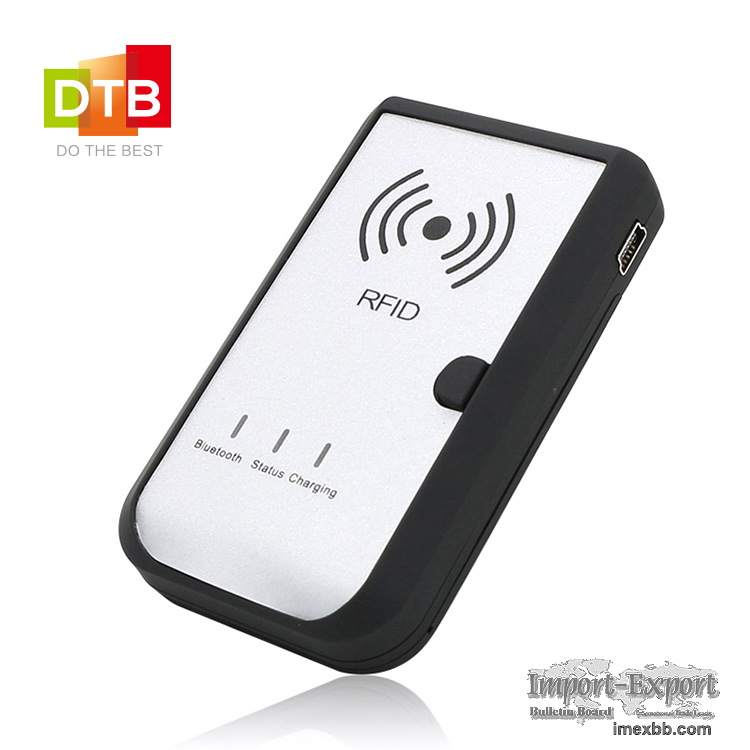

Description of Bluetooth RFID Reader

The Bluetooth RFID reader is EOL( end of life), our RFID Desktop Reader, UHF
RFID Desktop Terminal QY-DR100U and UHF RFID Desktop Terminal QY-DR300U are
suitable alternatives.

To fulfill the requirements of the customers for E-wallet, E-commerce
applications, this Bluetooth reader supports ISO14443-A or ISO18092 or
ISO15693. The Bluetooth reader is characterized by its read/write functions,
Bluetooth communications, and battery charging management functions, etc.
Overview
Smart outlook, light and handy, portable;
Bluetooth communicates online devices supporting the standard blue tooth
2.0;
Peripheral press button can choose the active reading card mode, convenient
to use.
Specifications of Bluetooth RFID Reader

Basic Parameters
Model Bluetooth Reader & Writer
Dimensions 80.5mm X 52.5mm X 5.5mm
Keys One power button, one trigger button
Battery Standard 3.7V/420mAh lithium battery
Operating Temp -10℃ to +50℃
Interface USB
Wireless Data Bluetooth
Communication
Indicators Buzz  LED indicator: charging indicator light
With low battery, LED light or buzz is active.
Protection Equipped with over-charge protection, over-discharge
protection  and short-circuit protection
RFID Parameters
Frequency Range 13.56MHz
Protocols and Chip supported Option 1:ISO14443A- MIFARE Classic
1K/4K,Ultralight EV1
Option 2:ISO18092- NTAG203/213/215/216,and Mifare S50,S70,ultralight
Option 3: ISO15693-I code sli, I code sli-l, I code sli-s
Support OS Option 1: PC (windows 32bit) and Android 2.0/4.0 (Available
for each above protocol)
Option 2: IOS (Available for each above protocol)
Current Consumption <150mA
Read Range 3-5cm, depend on the installation site and the antenna
Bluetooth Module Parameters
Frequency Range 2.4GHz
Bluetooth When main machine searching the bluetooth reader and
connecting successfully, then can use virtual serial port to communication
Data Rate Utmost 115200dps
Indicators Bluetooth work indicator
