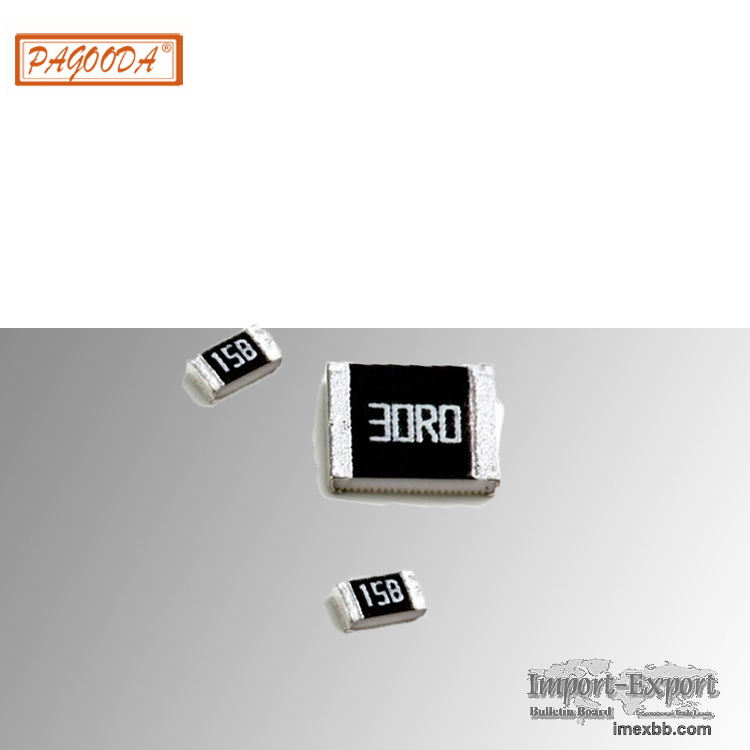

Detailed description of precision chip resistors

Detailed description of precision chip resistors
Series: 0805
Resistance: 0R—500M 0Ω—22MΩ full range
Power: 1/20W—1W
Deviation: D=±0.5%, B=±0.1%
Features of Precision Chip Resistors
1. The resistance error is ±0.5%, and the temperature coefficient is
±50ppm/℃;
2. Small size and light weight;
3. Adapt to reflow soldering and wave soldering;
4. Stable electrical performance and high reliability;
5. The assembly cost is low, and it matches with automatic placement
equipment;
6. High mechanical strength and superior high frequency characteristics;
7. Comply with the requirements of ROHS directive.
8. Application areas include handheld products, computer products, industrial
and medical instruments, etc.
Imperial (in) Metric (mm) Resistance Voltage Power Rating
0201 0603 0-47M 25V 1/20W
0402 1005 0-47M 50V 1/16W
0603 1608 0-47M 50V 1/16W, 1/10W
0805 2012 0-47M 150V 1/10W, 1/8W
1206 3216 0-47M 200V 1/8W, 1/4W
1210 3225 0-47M 200V 1/4W, 1/3W
1812 4832 0-47M 200V 1/2W
2010 5025 0-47M 200V 1/2W, 3/4W
2512 6432 0-47M 200V 1W

Minimum Order: 4000 pieces

Click to Enlarge
