DGWX2C/DGWX2S-Rear Drive Motor-City Bike

Suzhou Shengyi Motor Co, Ltd was established in 2003, a leading hub motor
supplier specialized in theesearch, development, production, sales and service
of the china hub motor. The products are popular all over the world.

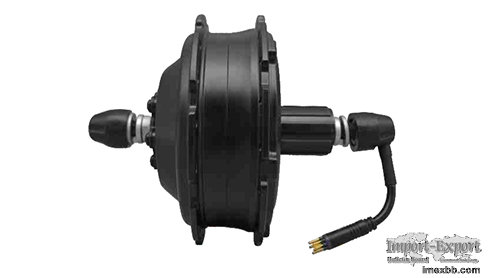

This heavy duty electric bike motor has one feature, it's made up of helical
gear, even though it's heavy, it provides a lot of power.

Specification of DGWX2C, DGWX2S-Rear Drive Motor-city bike
specification parameter
Driving position Rear
Wheel size 16in-28in
Spoke 36holes 12G/13G
Rated power 250W~350W
Rated voltage 36V~48V
Max.torque ≥50N.m
Efficiency ≥80％
Cable side Right
Number of magnet 30
Reduction gear ratio 0.000694444
Installation dimension 135mm
Inside speed sensor 1~6
Hall sensor With/Without
Free wheel Cassette 10-11S
Screw 6-7S
Brake Disc-brake
V-brake
Classification of waterproof IPX5
Weight 3.6Kg
