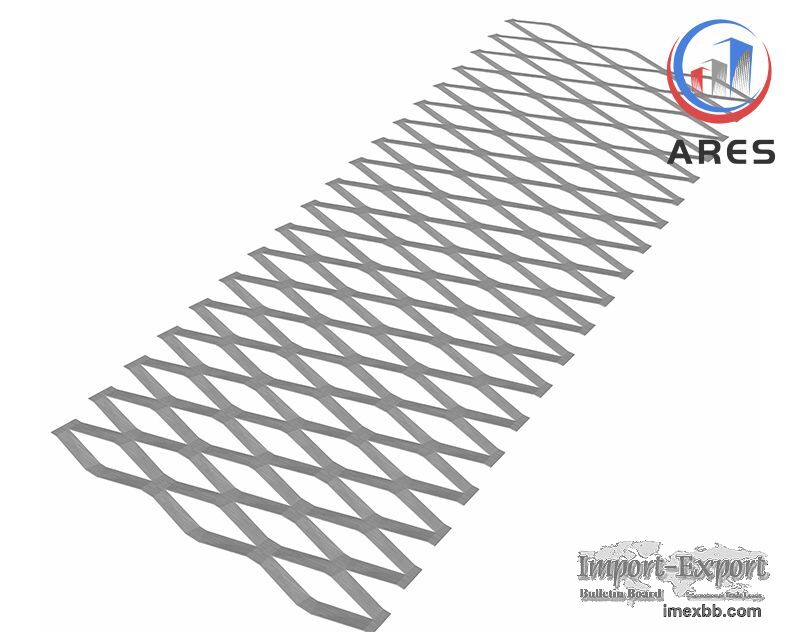

Diamond Expanded Mesh for Facade Screening

Expanded Metal Cladding

HJAD-150400 is an popular type, which is beautiful, cost saving and low
maintenance

Model No.: HJAD-150400
Material: Aluminum
Thickness: 3.0 mm
LWD x SWD: 400mm x 150mm
Strand width: 50mm
Overall thickness: 42mm
Weight: 5.36 kg/m2
Open area: 33%

(1) Production of architectural expanded mesh

Architectural expanded mesh is produced by means of metal plate forming
process. This obtains openings and regular gaps with different shapes (diamond-
shaped, square shaped, hexagonal shaped, triangle-shaped and fish scale hole)
and sizes, permitting air, light and eye sight transition.

All the details can be customized according to customers' requirements such as
the material, thickness, hole size, strand width, panel size even the finish
and color.

(2) Architectural use of architectural expanded mesh

Nowadays, architectural expanded mesh is widely used in architectural
decoration, for example, building cladding, roof ceiling, decorative fence,
interior screen and so on.

Our specialists can provide expert advice and guidance to assist you in
selecting the appropriate format of expanded mesh panel. We can assist with
advice regarding acoustics, light transmission and ventilation requirements and
offer suggestions to suit individual budgets, designs and installation
requirements.

Whatever is the process, type of architectural expanded mesh or field of
application, we guarantee the highest quality.

Minimum Order: 10 square metres
