DIN6343 Clamping Collet

The DIN6343 Clamping Collet is a standardized, high-precision workholding
component designed according to DIN 6343 German Industrial Standards, ensuring
reliable performance, interchangeability, and accuracy in CNC machining,
turning, and grinding operations. Known for its robust construction and
exceptional concentricity, this collet provides stable clamping force,
excellent repeatability, and extended tool life — making it an essential
component in modern metalworking and manufacturing industries.
DIN 6343 CLAMMPING COLLET
Model D1(mm) D2(mm) L(mm) Hole size(mm) Wt(kg)
round square hex
DIN6343-F17.5 17.5 22 51 13 8 10 0.05
DIN6343-F22 22 30 55 16 11 13 0.09
DIN6343-F27 27 38 72.7 22 15 19 0.10
DIN6343-F28 28 38 70 22 15 19 0.12
DIN6343-F32 32 45 75 26 18 22 0.27
DIN6343-F35 35 48 80 30 21 26 0.35
DIN6343-F42 42 55 94 36 25 30 0.49
DIN6343-F48 48 60 94 42 29 36 0.57
DIN6343-F56 56 68 94 50 35 42 0.65

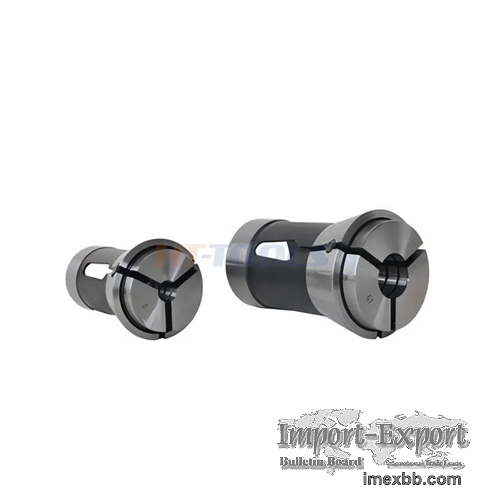

DIN6343 Clamping Collet
Enlarge Click to Enlarge
