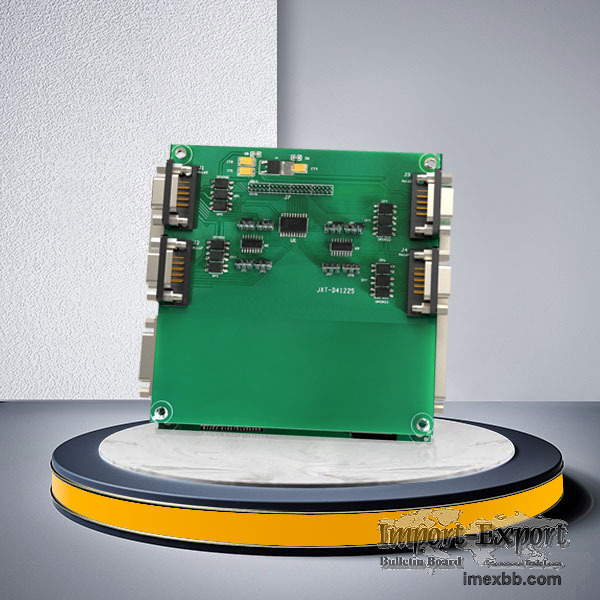

DLC2 – V2 EZCAD3 DLC2 SERIES USB LASER & GALVO CONTROLLER

Supports the enhanced version of the protocol data XY2-100 (X, Y, Z three-axis
scanhead)
Fiber, CO2, QCW, SPI, UV, YAG and other lasers can be supported by the laser
expansion card
Support 10 input and 8 output ports
12V power supply, minimum current requirement 3A
Support fly marking function
Support offline marking function
Support 16bit/18bit galvanometer, can be customized according to the actual
galvanometer protocol
Configurations
Connection Method USB2.0
Compatible Laser All Mainstream Laser Types In The Market
Galvo Scanner Control Protocol All Mainstream Galvos Types In The Market
Power Supply Method 12-24V DC Wide Voltage Input
Number of Input Ports 10 Channels
Number of Output Ports 8 Channels
Operating System WIN7/WIN10/WIN11, 64-bit Systems
Encoder Input 2 Channels
Supports laser control via interface cards like Fiber, STD, SPI, QCW, etc.
Equipped with a watchdog function to prevent abnormal prolonged laser emissions
Enhanced control card with interference resistance
Input port triggering supports both PNP and NPN relay connections
