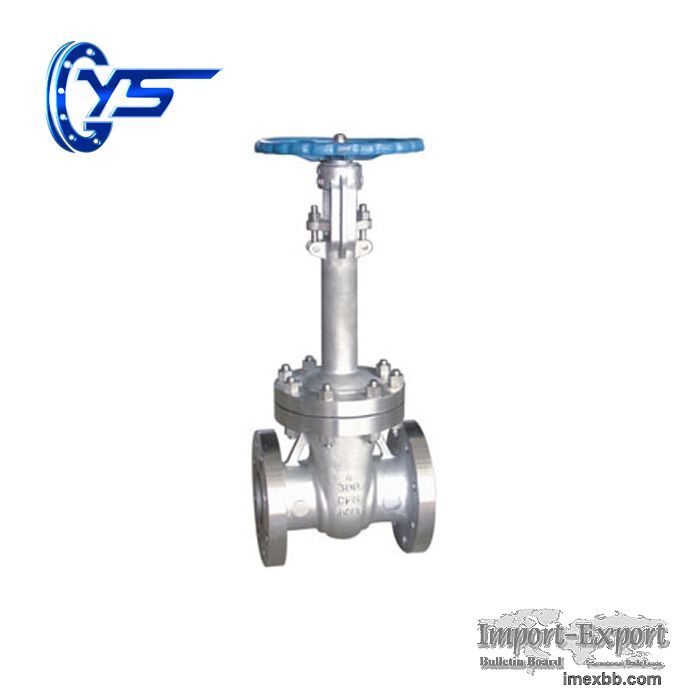

DN 50-1000mm ANSI Low Temperature steel Gate Valve

DN 50-1000mm ANSI Low Temperature steel Gate Valve Low Temperature steel Gate
Valve price LOW TEMPERATURE STEEL SERIES
Medium: propylene, propane, methanol, ethane, gas, liquid ammonia;
Operating temperature: LCB: -46 ℃; LC1: -60 ℃; LC2: -73 ℃
Operation mode: manual, electric
Caliber: 1 "-16"
Pressure: 150-600LB
Body material: low temperature steel
Connection method: flange

LOW TEMPERATURE STEEL SERIES Details
ANSI Low Temperature steel Gate Valve Material of main parts
Part Name material
Body / bonnet LCB, LC1, LC2
Valve stem F431, F304, F304L
Valve seat STL
ANSI Low Temperature steel Gate Valve Performance Specification
model Nominal pressure Test pressure (mpa) Applicable medium
Strength (water) Sealed (water)
DZ41Y-150 LB 150 LB 2.40  1.76  Propylene, propane, methanol, ethane,
gas, liquid ammonia
DZ41Y-300 LB 300 LB 3.75  2.75
DZ41Y-600 LB 600 LB 6.00  4.40

Low Temperature steel Gate Valve dimensions and connection dimensions
model Nominal diameter
(mm) Size (mm)
L D D1 D2 b Zφd
DZ41Y-150LB 2" 178 152 120.5 92 16 4 * φ19
2 1/2 " 190 178 139.7 105 18 4 * φ19
3 " 203 190 152.5 127 19 4 * φ19
4 " 229 229 190.5 157 23.9 8 * φ19
5 " 254 254 215.9 186 25.4 8 * φ22
6 " 267 279 241.5 216 28.5 8 * φ22
8" 292 343 298.5 270 30.2 8 * φ22
10 " 330 406 362 324 31.2 12 * φ25

We can design and produce various standard Valve. Standards such as GB, JB, US
API, ANSI, British BS, German DIN, Japanese JIS, GOST, GOST series Valve are
our main products.
