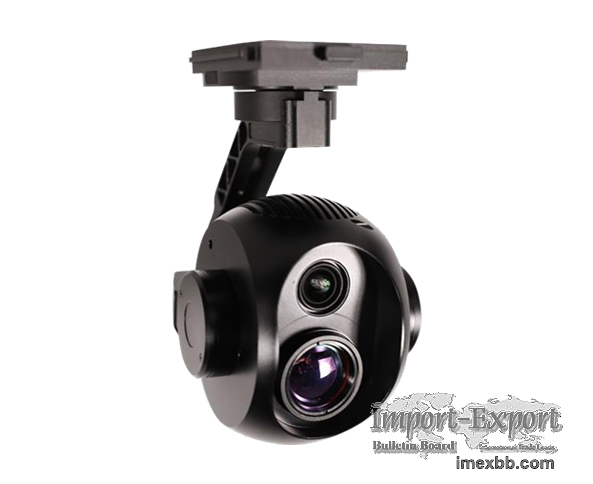

Dome Thermal Camera

Dome Thermal Camera

WLS-DDTE of thermal dome camera can be attached to the drone, which integrates
the self-stabilized PTZ, high resolution thermal camera lens and wireless image
transmission. With the multi-rotor UAV, it can complete stable and clear video
acquisition and data transmission tasks all day long.

The thermal camera lens is fixed on the high-precision three-axis self-
stabilized pan tilt. The self-stabilized pan-tilt ensures that the pose of the
thermal image lens always faces the set direction and keeps the image stable in
vibration. Through the high-definition low delay image transmission module, the
high-definition thermographic image collected by the thermal camera lens can be
transmitted to the command centre through a wireless data link. The front end
of the camera supports a memory card with a maximum 4K resolution, which has
the advantages of low power consumption, fast autofocusing, stable and clear
image, etc.

Parameters Of Dome Ir Thermal Camera

WLS-DTE Specification
Category Title WLS-DDTE6025F-8013 WLS-DDTE6025F-2180
Thermal Lens 25mm
Resolution 640*512
NETD 50mk （20mk optional）
Sensor α-Si sensor/8～14μm
Temp Measure -20~800° （Or OEM）
Visible Surface 1/2.3'' CMOS 1/2.8'' CMOS
Resolution 3840 x 2160 1920 x 1080
Min. Illumination 0.1Lux (Color) 0.005Lux (Color)
Encoding H.265/H.264/MPEG4/MIPEG
Lens 3.85~13.4mm 6~180mm (210mm optional)
Aperture Support
Digital Zoom 4X
Housing Material Integral aluminum alloy housing
Protection Level IP66
Interface Network RJ45. 10/100 Base-T adaptive (integrated video output
and RS485 control)
Protocol TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS,
DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP
Power 12~25V
Environment Parameter Working Temp - 25°C ~+60°C (- 40° C Optional)
Storage Temp -45°C ~+70°C
Humidity <90%
Others Seismic resistance: 0.2g; Impact resistance: 15g
Pan/Tilt Angle Pan: 0 - 300° ;Tilt: -70°～+100°
Speed Pan: 0.01～120°/S，Tilt: 0.01～180°/S
Others Accuracy: ±0.008°
Demission 96*79*120mm 175*100*162mm
Others Weight 0.8kg
Power Consumption 8.4W

Details Of Dome Ir Thermal Camera

3-Axis gimbal stabilizer

Easy to operate, support pointing zoom, one key return to middle, mouse or
touch screen control

Supporting the overlay of GPS information into videos, subtitle files,
snapshots

Full range of support for quick disassembly, easy replacement

High precision, ±0.008° control accuracy, leading the industry. The maximum
Focal Length and fast flight motion still maintain the stability of the picture

Support intelligent target tracking

Open SDK to facilitate third-party client integration

Optional Temperature Measurement Function

Shandong Walson Electronic Technology Co., Ltd. is a professional surveillance
camera manufacturer. We provide Thermal Imaging Camera, Night Vision Telescope,
ir fixed dome network camera, dome infrared camera, dome ir camera, thermal
security camera and so on. Want to know more? Please contact us.
